Compass Leak Detector

SKU 717-202-G6
Save this product for later
Share this product with your friends

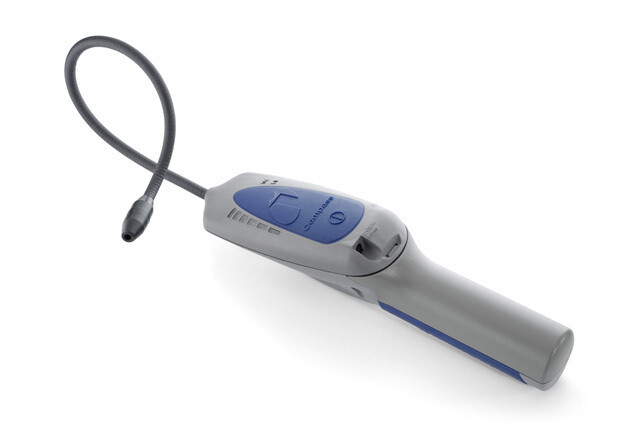

Compass Leak Detector
Product Details
Brand: JAVAC

CompassĀ® Refrigerant Leak Detector

A new direction in features, function and value

Integral to Compass is the INFICON patented heated diode sensor technology, delivering outstanding sensitivity to all refrigerants yet resisting jobsite contaminants such as dust, dirt and oil.

For maximum versatility and ease of use, Compass has features such as rechargeable batteries, the ability to operate on AC power, adjustable high/low sensitivity and a series of LED leak indicators. The ergonomic design with rubberized grip fits your hand perfectly for comfortable, secure operation.

ADVANTAGES

  • Patented heated diode sensor provides excellent sensitivity
  • Detects R22, R134a, R404a, R410a, R448a, R507 (AZ-50), R32, HFO1234yf, and all other CFCs, HCFCs, HFCs, and HFOs
  • Automatic background adjustment (ā€œzeroingā€)
  • Intuitive, easy one button operation
  • Power indicator shows when battery is low

FEATURES

  • Runs on NiMH batteries or AC adapter
  • Headphone jack
  • Made in USA

SPECIFICATIONS

Type Compass
Base unit includes - Sensor, NiMH battery, spare filters, wall charger, 12 V car charger, hard plastic carrying case
Operating Temperature - -20 to 50 Ā°C (-4 to 122 Ā°F)
Minimum sensitivity - 0.15 oz/year (4 g/a)
Power source - NiMH battery, AC adapter
Battery life - 5.5 hours
Weight with batteries - 1.15 lb. (0.522 kg)
Probe length - 15 in. (38 cm)
Certifications - CE marking per safety and EMC

CONSUMABLES

Compass
Part Number Description
703-020-G1 Replacement Sensor
712-700-G1 Spare Power Stick (batteries)
717-701-G1 Replacement filters and probe cap
