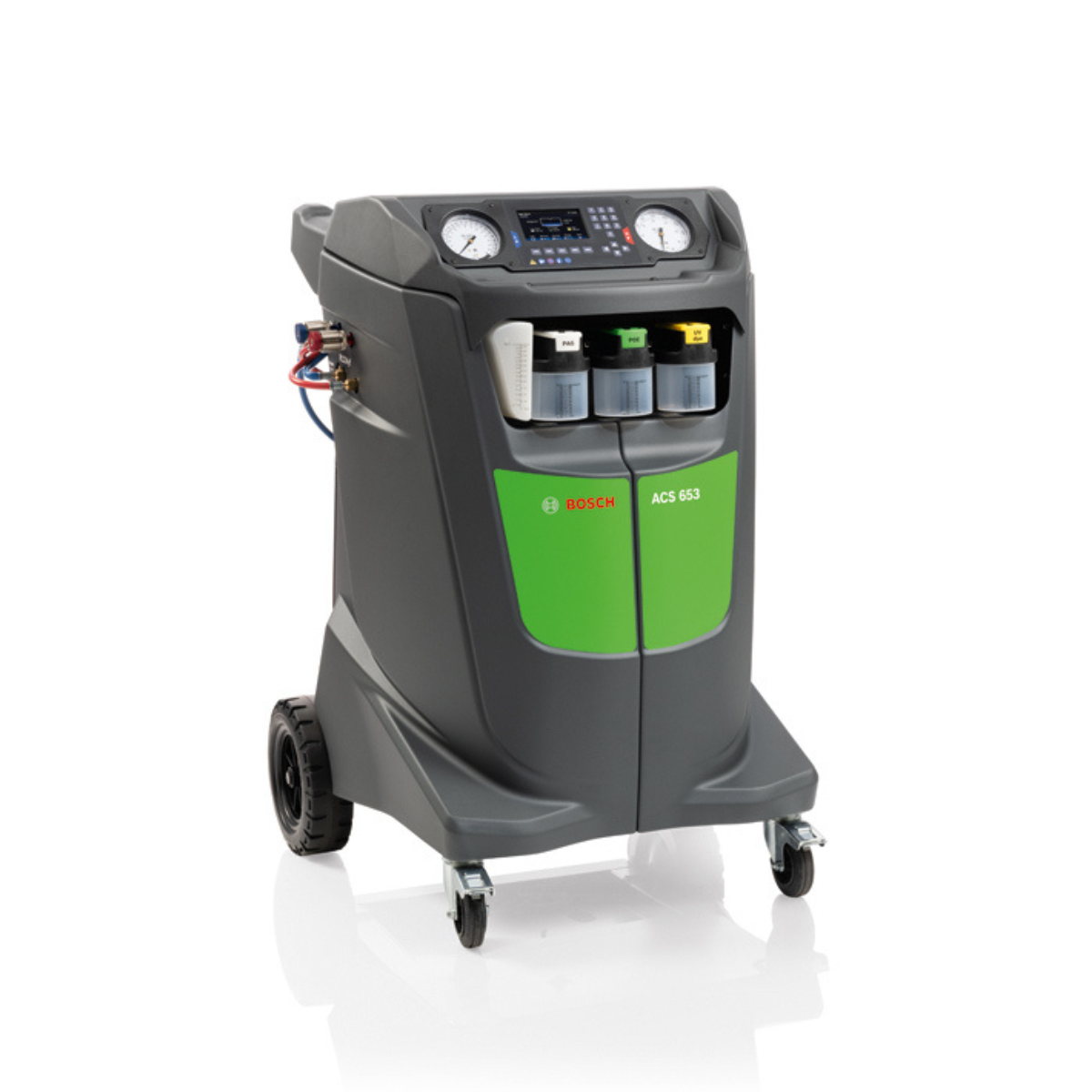

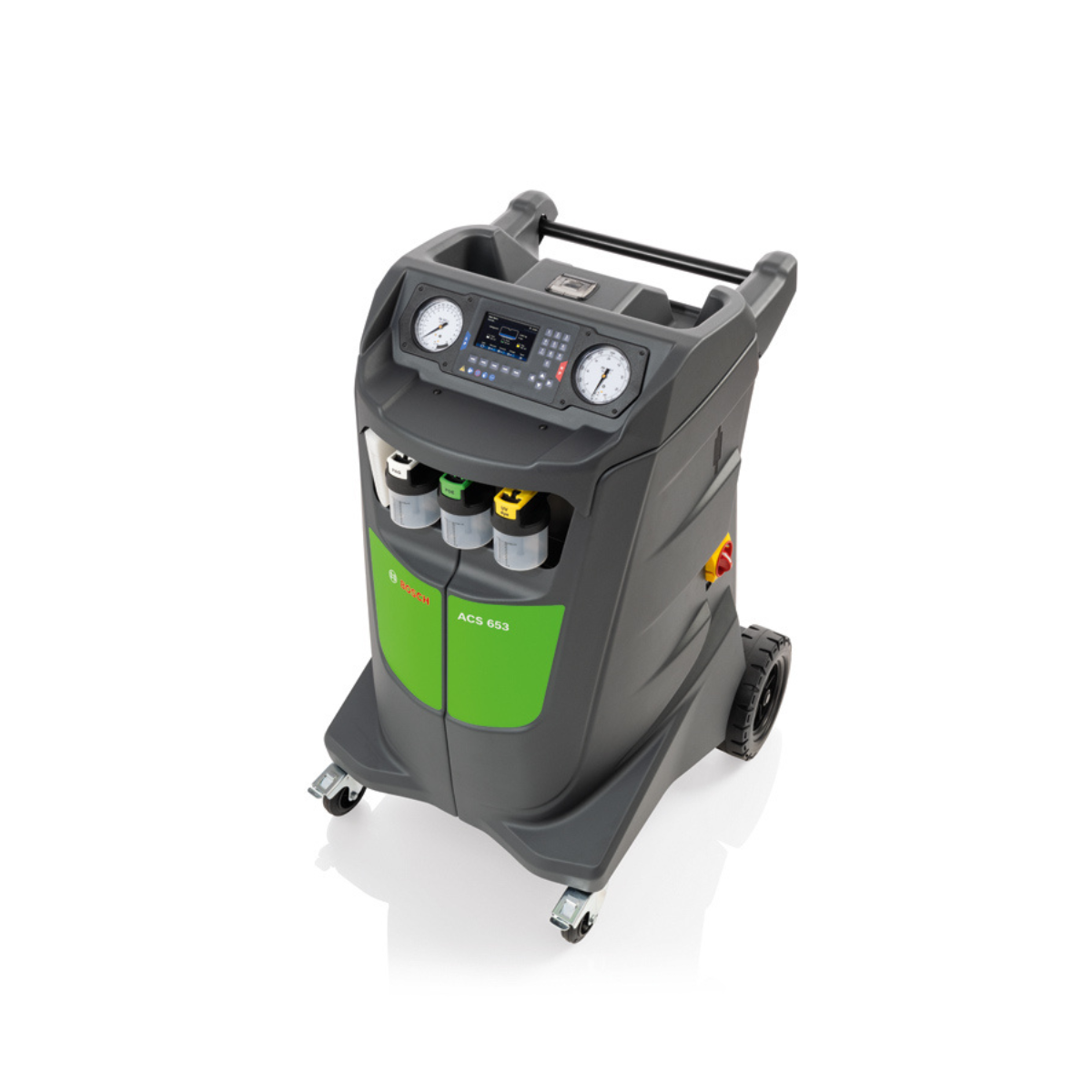

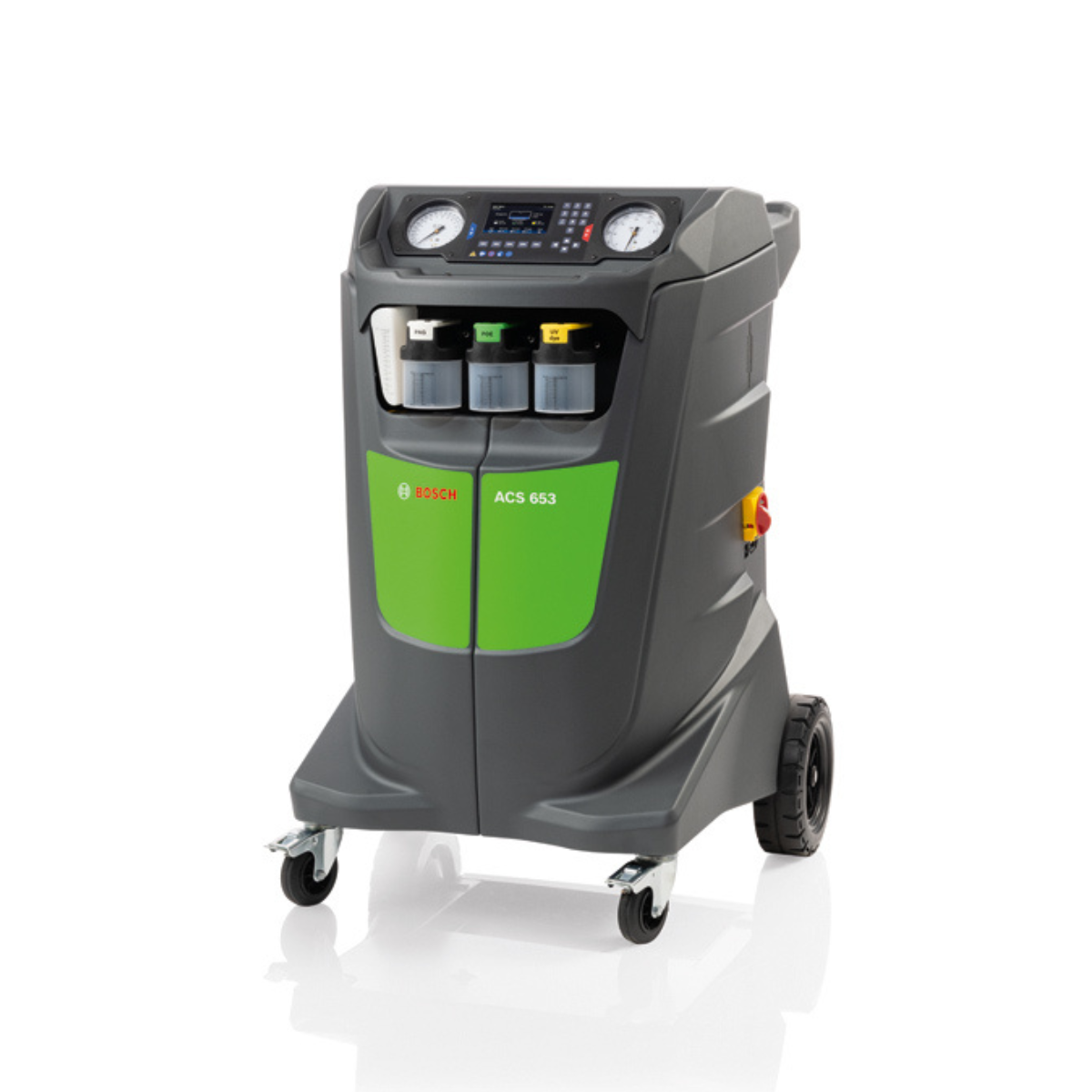

BOSCH ACS 653 - RRR - AUTOMOTIVE A/C SERVICE UNIT - FOR R134A
$ 9,307.00 inc.
$ 9,307.00 inc.
/
Sale
Sold out
Shipping calculated at checkout.
Share
Secure checkout with
Couldn't load pickup availability
Description
Meeting the technically demanding European standards, the ACS 653’s high precision measuring technology and fully-automatic service enables efficient service work on the A/C systems of cars and commercial vehicles.
The unit’s maintenance-friendly design allows fast and easy access to all the internal parts, saving time increasing workshop efficiency.
Two oil bottles for PAG and POE lubricants along with an automatic flushing function make the unit compatible with hybrid and electric vehicles too.
Features and Benefits
- Maintenance-friendly design: For easy and efficient access to the internal components of the A/C service unit
- Deep Recovery function with 99% of the refrigerant able to be recovered within minutes: Cutting time and costs while protecting the environment
- Innovative oil bottle system: For servicing vehicles with combustion engines and hybrid vehicles (PAG/POE)
- Designed with user-experience in mind: For the perfect combination of robustness and flexible mobile use
- Bosch Connected Repair compatible
- Integrated printer ACS653-P
Technical Data
| Refrigerant | R134a |
|
Operating mode
|
Fully-automatic
|
|
Recovery function
|
Automatic
|
|
Recovery rate
|
> 99%
|
|
Refrigerant detection
|
Optional
|
|
Oil drain
|
Automatic, with electronic scale
|
|
Vacuum function
|
Automatic
|
|
Leak test
|
Automatic
|
|
Pressure leak test
|
Yes
|
|
Pressure leak test (N2 / N2H2)
|
Optional
|
|
Hybrid oil function
|
Yes
|
|
Oil injection
|
PAG/POE
Automatic |
|
UV dye injection
|
Automatic
|
|
Refrigerant volume
|
Automatic, with electronic scale
|
|
Flushing function
|
Optional
|
|
Printer
|
Yes
|
|
Ventilation system
|
Electronic control
|
| Valves, HP/LP | – |
|
Pressure gage, HP/LP
|
100 mm, pulse-free
|
|
Tank pressure display
|
Digital
|
|
Service hoses
|
2,5 m (5 m optional)
|
|
Display
|
4.3" color display
|
|
Compressor
|
1/4 HD
|
|
Vacuum pump
|
170 l/min. (6 CFM)
|
|
Refrigerant tank
|
19.5 kg/21.5 kg
|
|
Oil bottles
|
2 x 250 ml
(hermetically-sealed as an option) |
|
Used oil bottle
|
1 x 250 ml
|
|
UV dye bottle
|
1 x 250 ml
(hermetically-sealed as an option) |
|
Dimensions in cm (L x W x H)
|
105 x 75 x 77
|
|
Weight
(with empty refrigerant tank) |
112 kg
|
|
Vehicle database
|
Yes
|
|
Programmable user database
|
Yes
|
|
A/C system performance test
|
Yes
|
|
Vehicle flushing adapter kit
|
Optional kit
|
|
USB port
|
Yes
|
|
Wi-Fi connection
|
Optional
|
|
App connection
|
Optional
|
Scope of Delivery
- Safety kit (glasses and gloves)
- manual
- High pressure service hose
- Low pressure service hose
- 1x New oil bottle PAG 250 ml
- 1x new oil bottle POE 250 ml
- 1x UV contrast liquid bottle 250 ml
- 1x oil drain tank
- Quick couppler
- power cable
- tank adapter
- dust cover
