PORTABLE REFRIGERANT RECOVERY MACHINE JAV5000

 Description

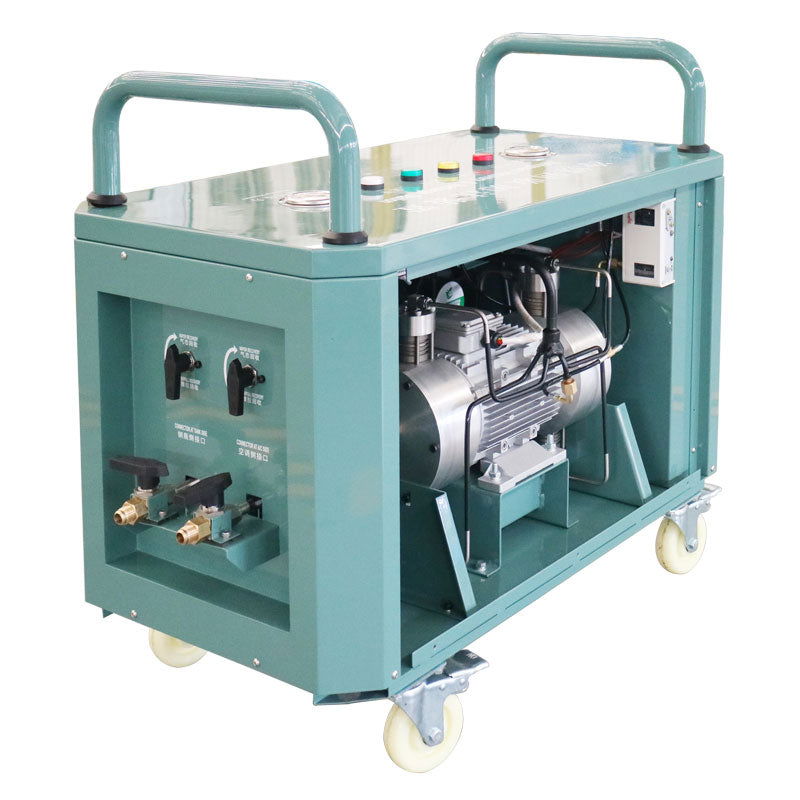

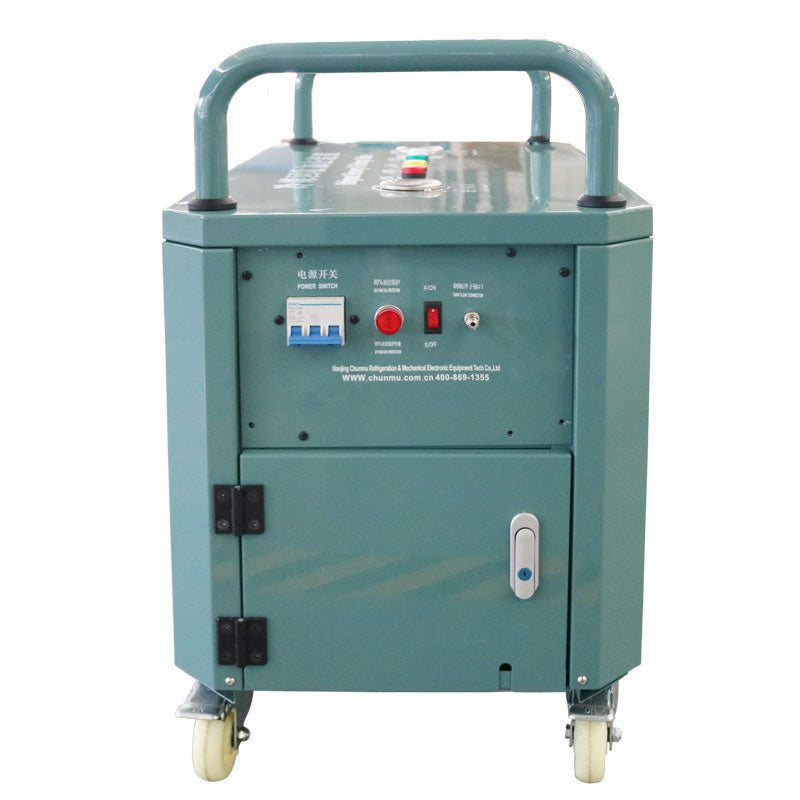

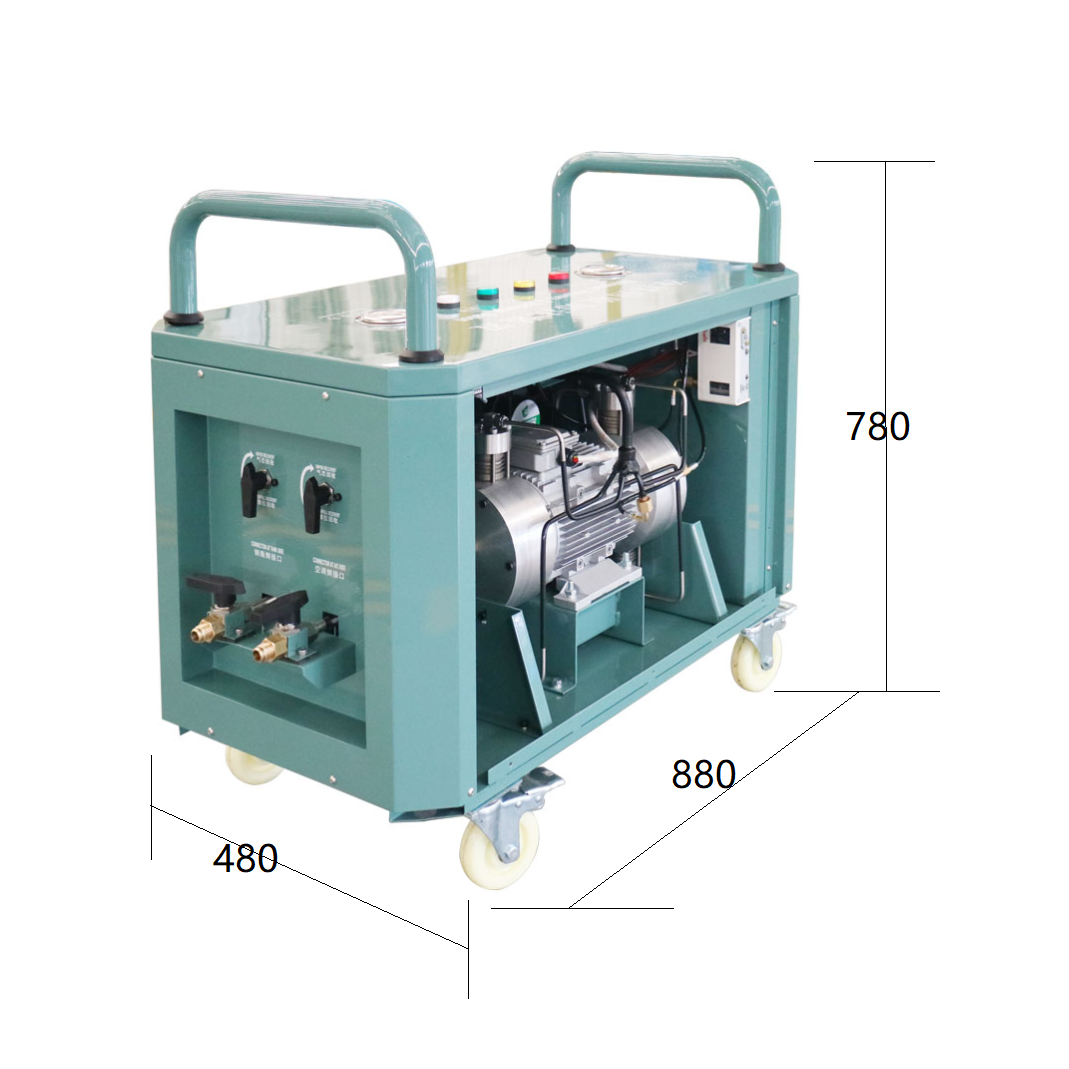

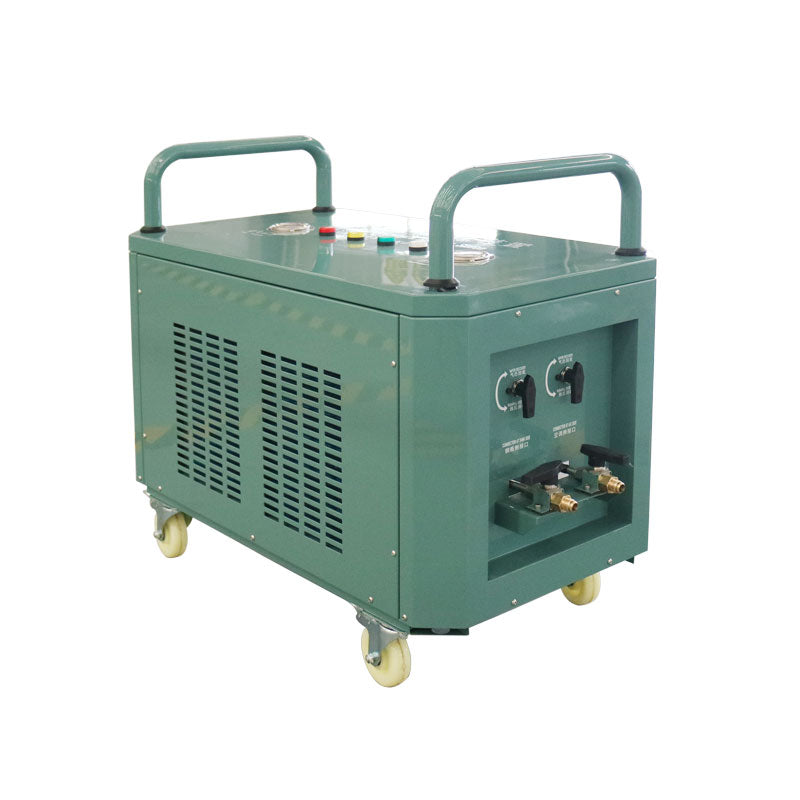

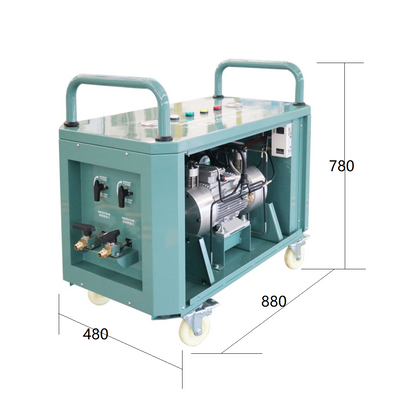

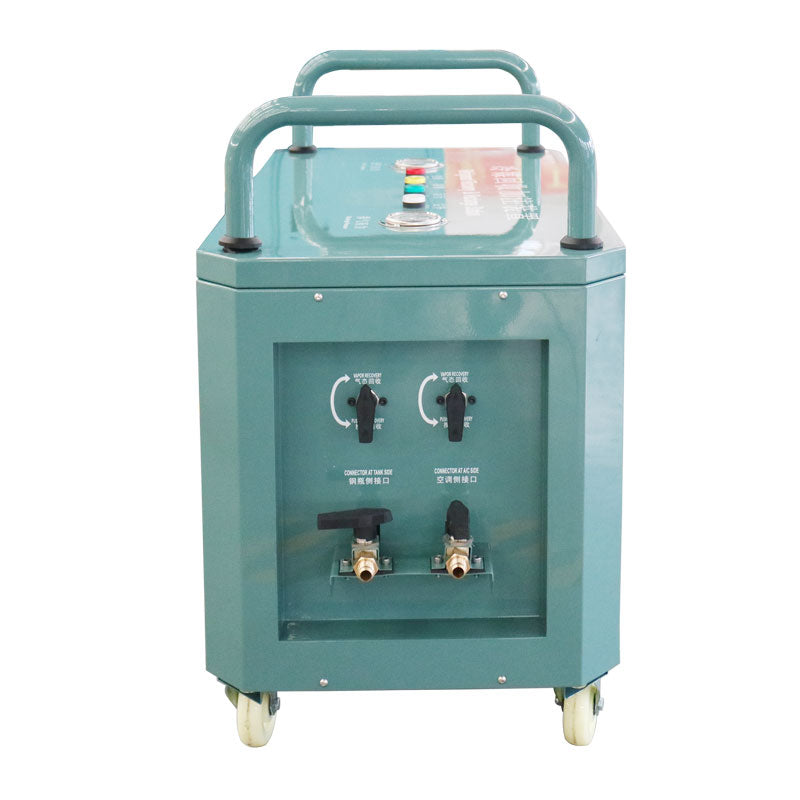

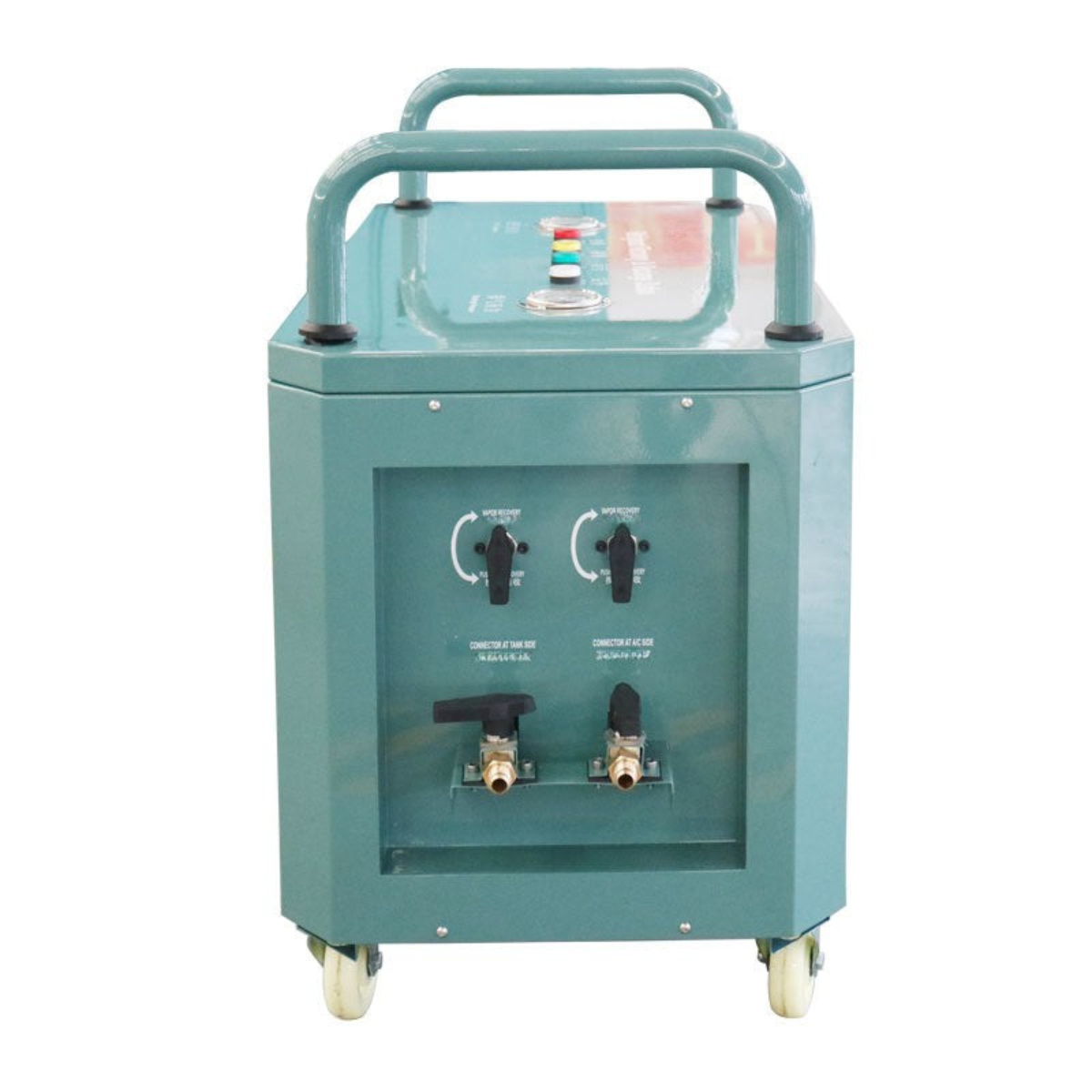

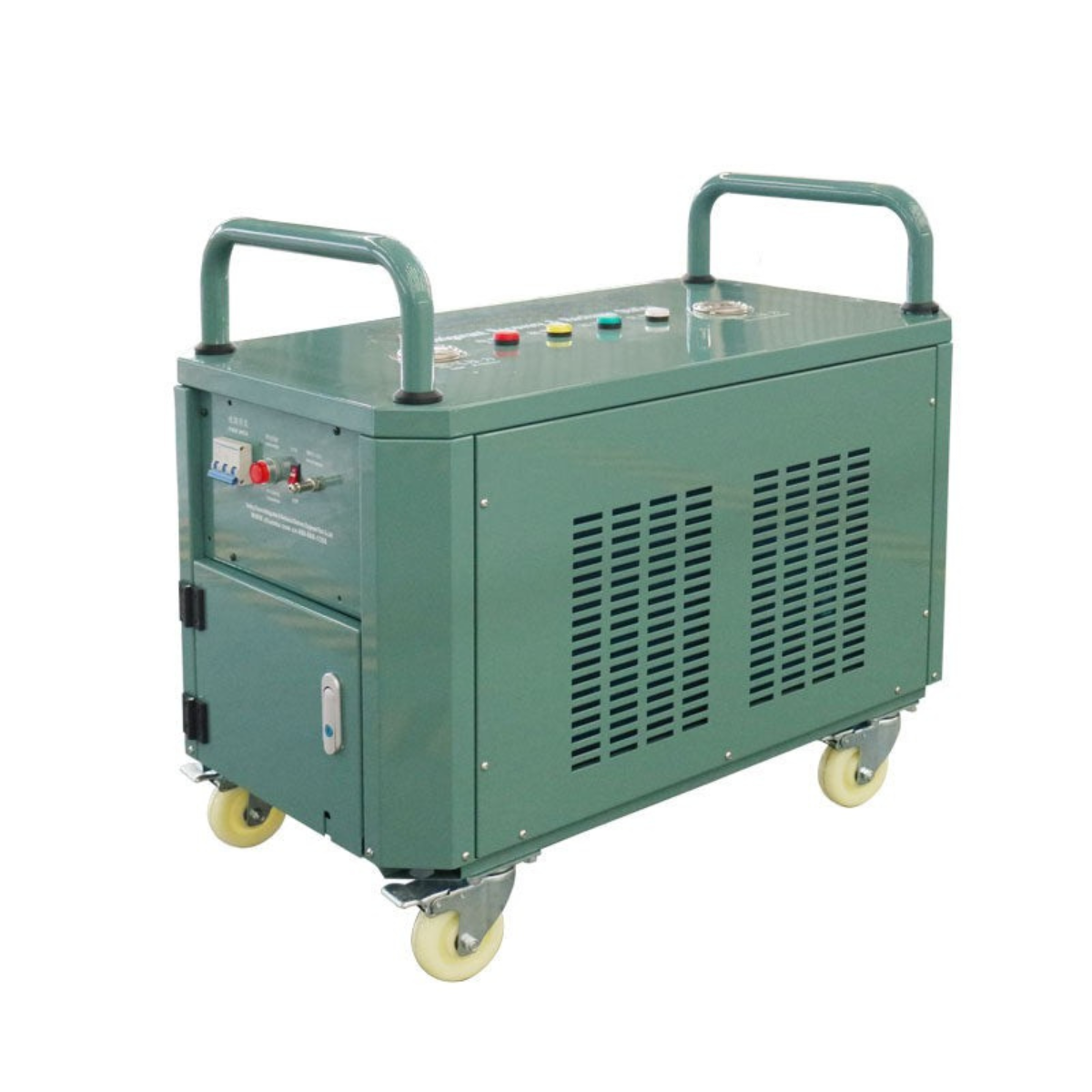

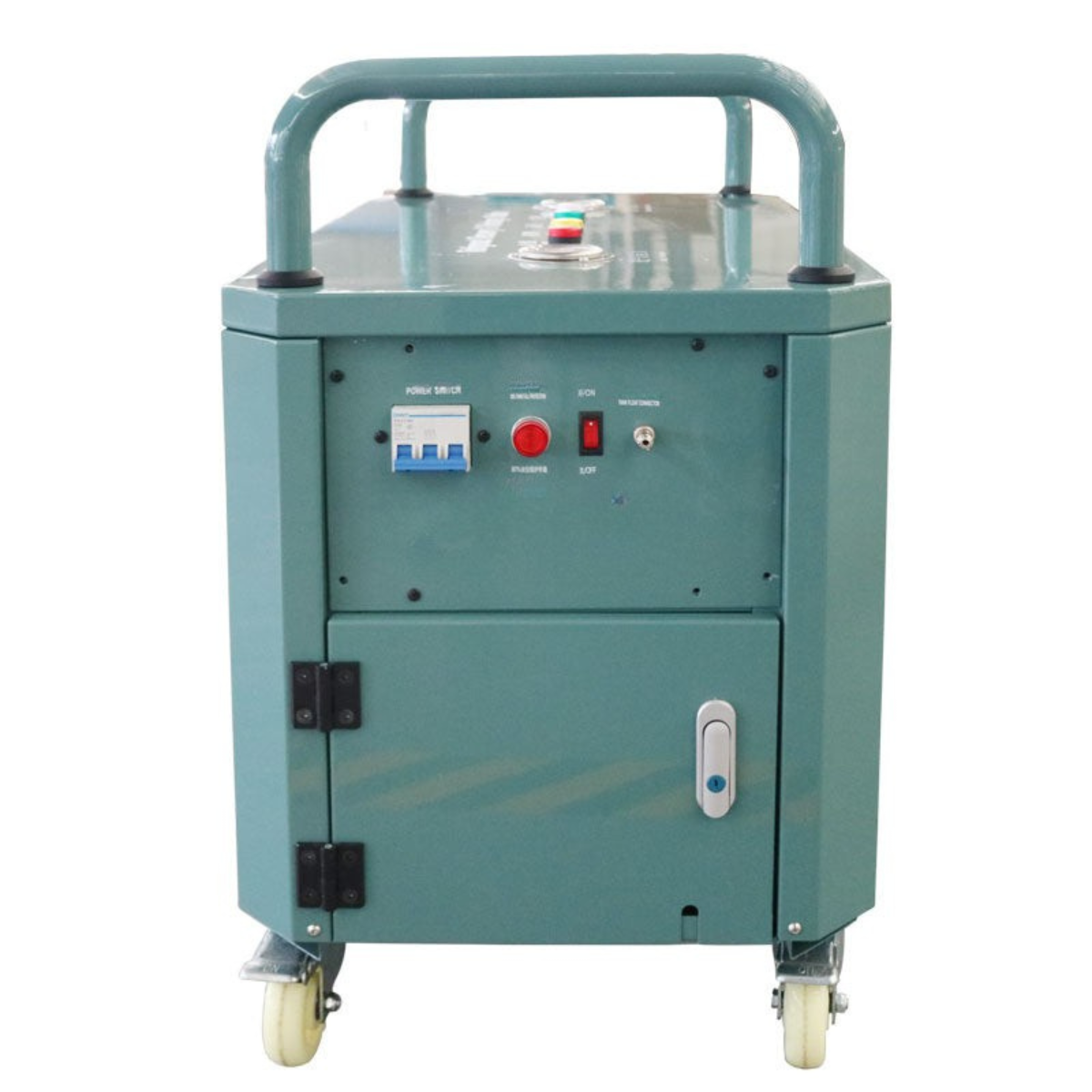

CM5000 Portable Refrigerant Recovery Machine

CM5000

CM5000 commercial series refrigerant recovery machine suitable for most CFC/HCFC/HFC refrigerant with ultra-fast recovery rate, it equipped with a superior condenser and powerful four-cylinder oil less compressor which allow you recovery refrigerant at deep vacuum, no refrigerant loss, it’s a necessary tool while you are repairing chiller and other refrigeration equipment.

Application

Chiller Maintenance

Tank residual gas recovery

Feature

• Oil-free compressor – compatible with CFC/HCFC/HFC refrigerants
• Ultra-fast recovery rate for both liquid and vapor refrigerants
• Multi-function valve design- simple operation in vapor and push/pull recovery
• Perfect protection cut-out function – safe credibility;
• Optional air cooled and water-cooled version
• High vacuum degree -0.04Mpa allow recovery more refrigerant for avoid refrigerant lose
• Equipped with self-purge function for preventing cross contamination
• Equipped with 80% float switch for avoid cylinder overfilling
• Specially designed for chiller and central air condition
• Continuously running for 24 hours duty cycle

Specification

• Motor:2HP

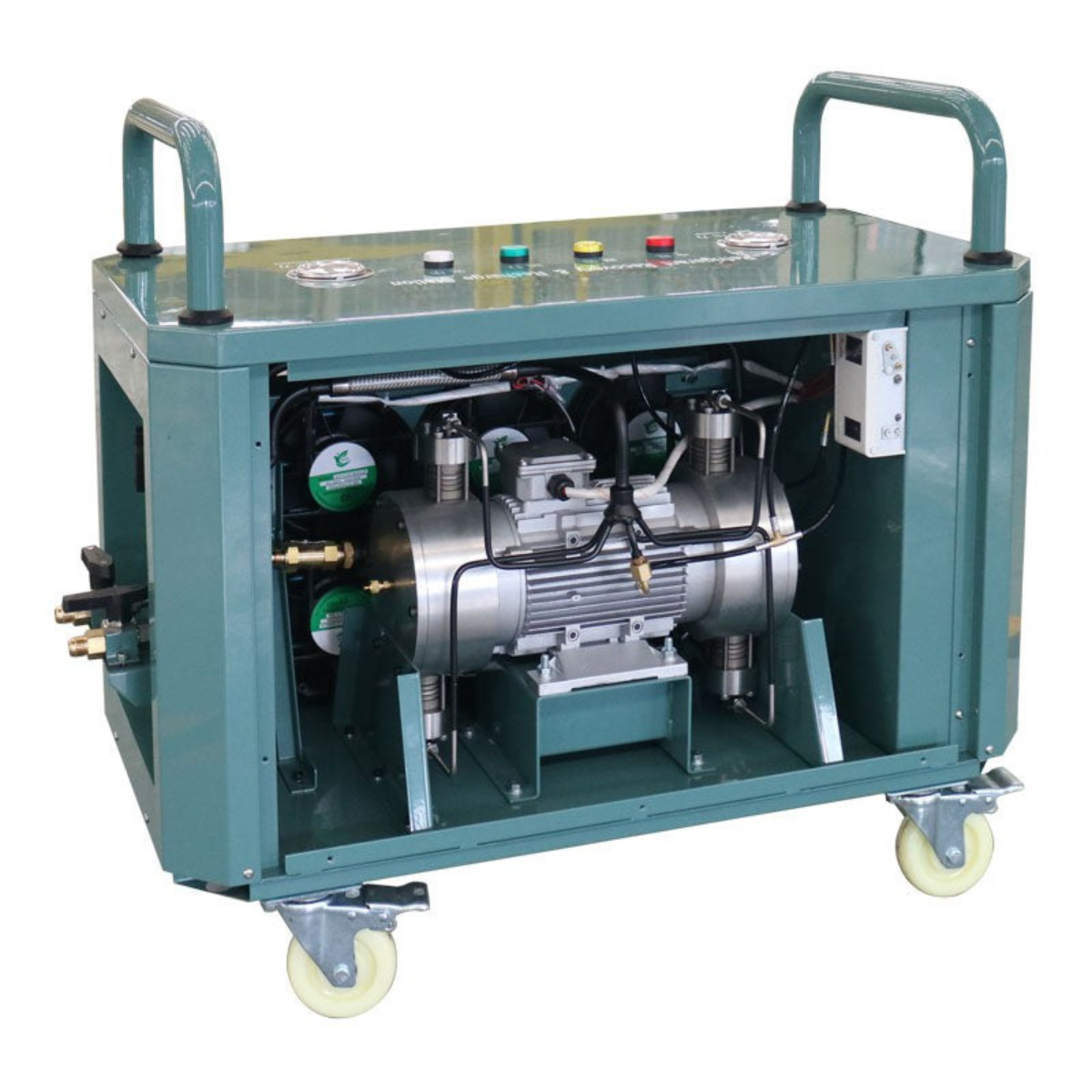

• Compressor: Oil-Less Piston Four-Cylinder
• Vapor Recovery Rate:60Kg/h
• Directly Recovery Rate:250Kg/h
• Liquid Push Pull Recovery Rate:1300Kg/h
• Cooling Type: Air Cooled
• Voltage:380V 50Hz 3PH
• Weight:80Kg
