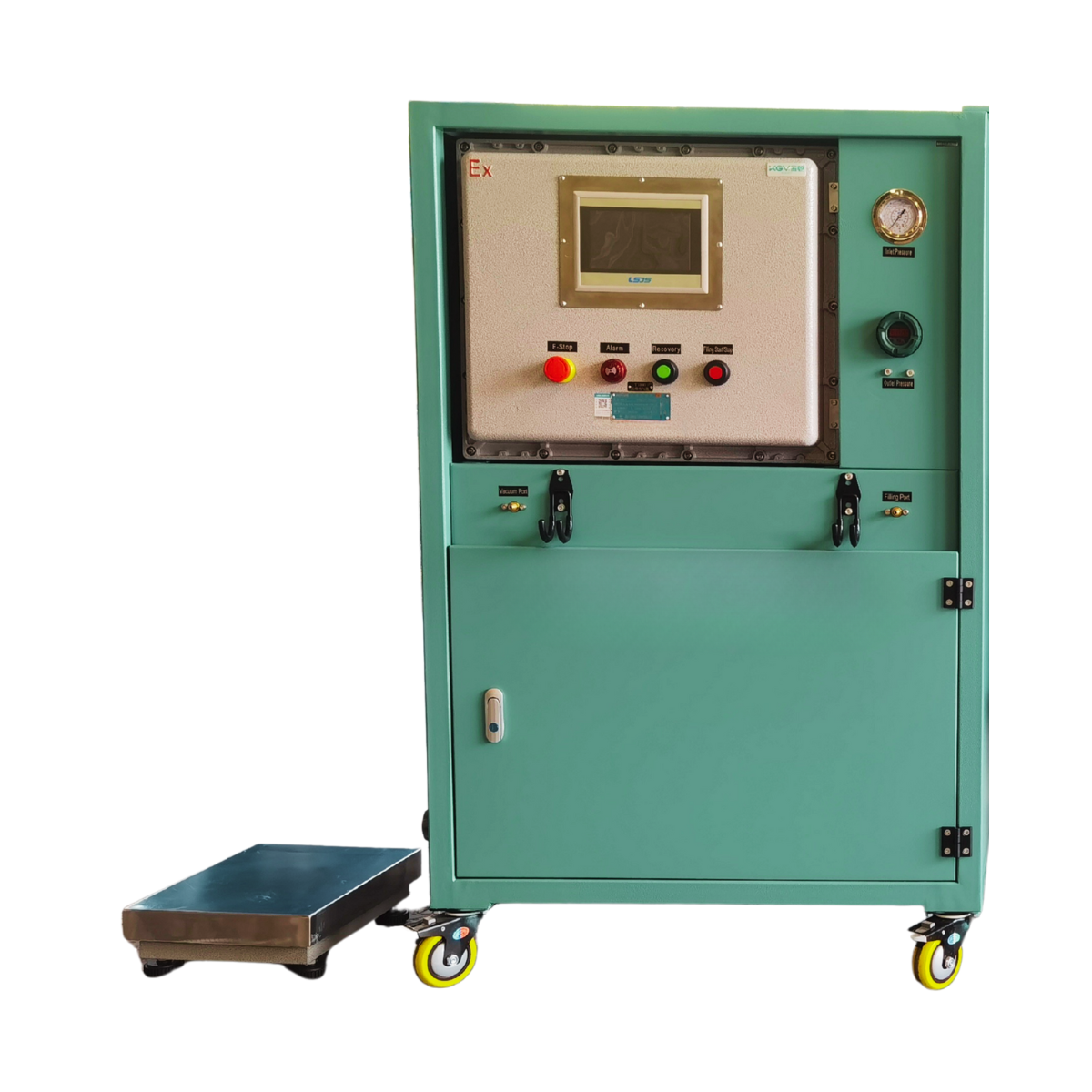

REFRIGERANT FILLING SYSTEM JAV8800

 Description

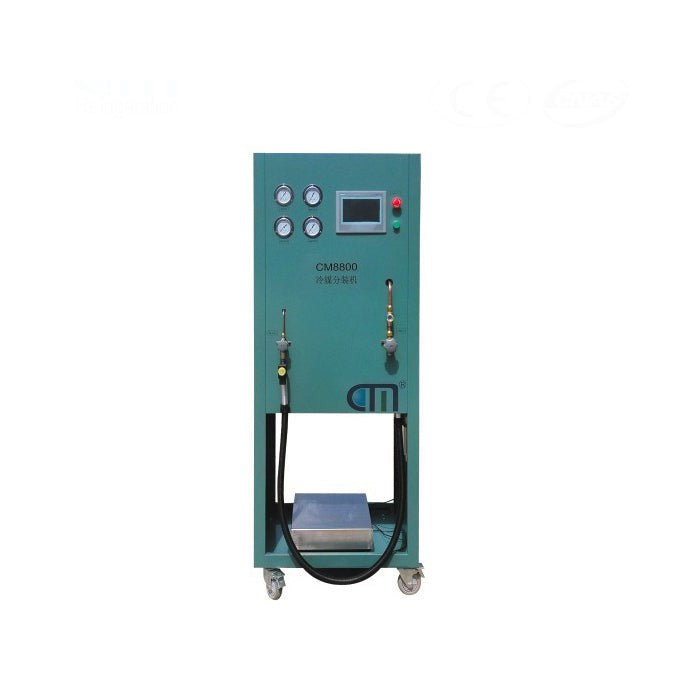

CM8800 Refrigerant Filling System

CM8800

CM8800 refrigerant filling machine is specially designed for transfer refrigerant from big cylinder (ISO,926L) to small recovery tank (13.6L,20L), it combines vacuum, recharge and recovery function in one system, you won't be disappointed with its performance.

Feature

1. Vacuum Separately: vacuum the gas from the recovery tank.

2.Pump out/Recharge: Pump out the store tank and recharge into a certain amount of refrigerant.

3. Recharge: Recharge a certain amount of refrigerant into the store tank with refrigerant already.

Specification

1. Booster Pump Power: 1/2HP;
2. Vacuum Pump Flow: 4L/S;
3. Liquid offer Connector: 1/2'' Liquid out Connector: 1/4''(standard),3/8'', 1/2 ''optional;
4. Size of Scales: 360mm(L) *360mm(W)*120mm(H);
5. Weight Range of Scales: 40kg(standard), 100kg, 150kg optional;
6. Outer Size: 700mm(L) * 500mm(W) * 1750mm(H);
7. Package Weight: 120kg
8. Package Size: 750mm(L) * 620mm(W) * 1840mm(H).
