PORTABLE REFRIGERANT RECOVERY MACHINE JAVV400

 Description

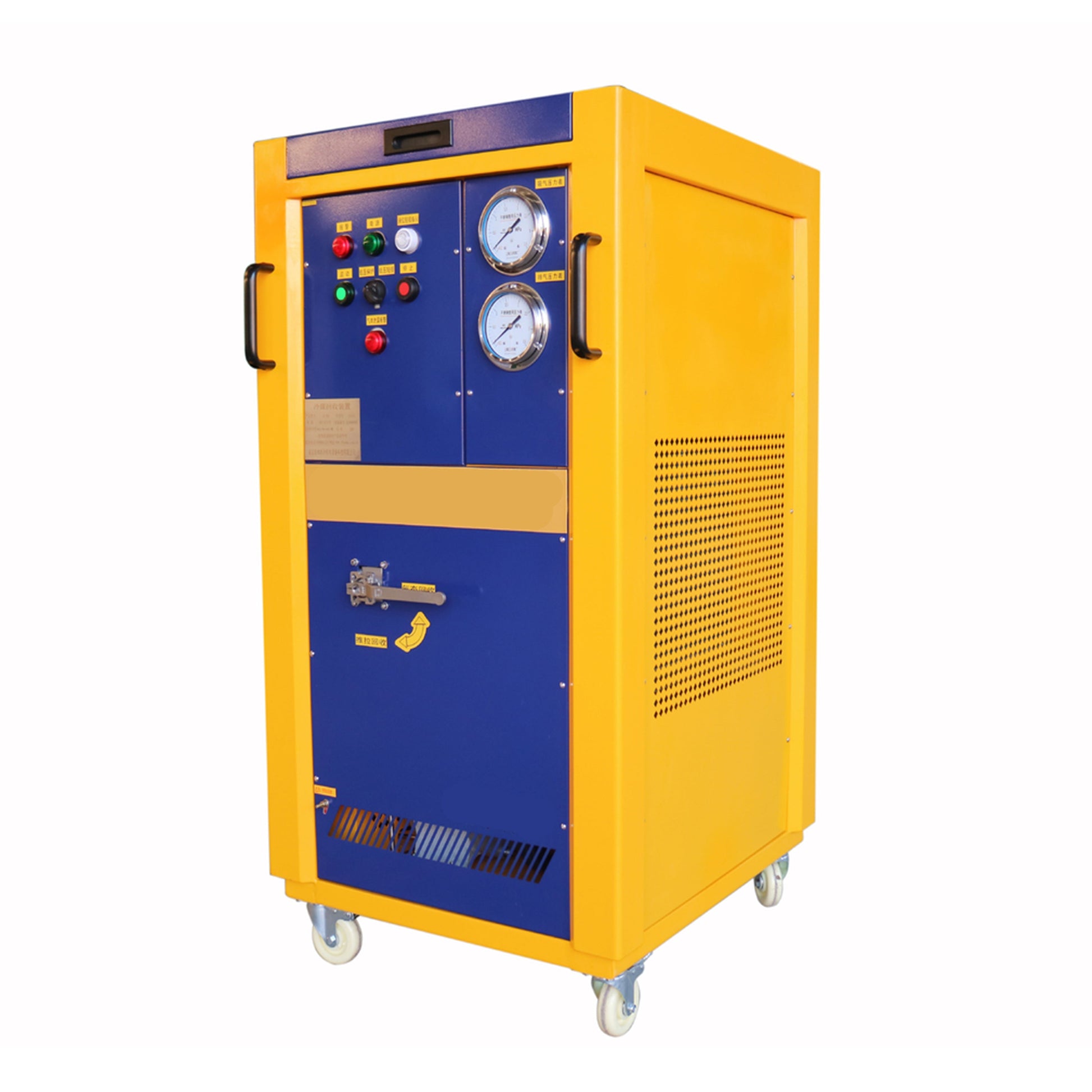

CMV400 Portable Refrigerant Recovery Machine

CMV400

Products in CMV400 commercial refrigerant recovery series are universal for most common refrigerants.

It equipped with powerful stainless steel two stage oil compressor which allow machine recovery refrigerant fast at flow rate and long working life

Application

Chiller Maintenance

Ton Tank Residual Gas Recovery

Feature

• Oil-free compressor – compatible with most common refrigerant
• Ultra-fast recovery rate for both liquid and vapor refrigerant
• One valve exchange valve design to recovery liquid and vapor without pipeline exchange
• High pressure and low pressure shut-off
• Standard air-cooled version for high efficiency heat exchange rate
• High vacuum degree -0.04Mpa allow recovery more refrigerant for avoid refrigerant lose
• Once recovery finished, machine stop automatically
• Long working life
• Food grade stainless steel compressor

Specification

• Motor:4HP
• Compressor: Oil-Less Piston Twin-Cylinder
• Vapor Recovery Rate:80Kg/h
• Liquid Push Pull Recovery Rate:1500Kg/h
• Cooling Type: Air Cooled
• Voltage:380V 50Hz 3PH
