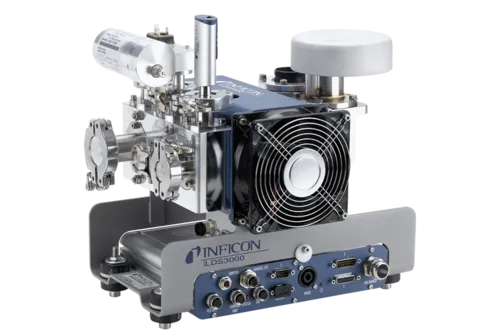

INFICON LDS3000 HELIUM LEAK DETECTOR

  • PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Enquiry About This Product

 Description

The LDS3000 helium leak detector combines high accuracy and repeatability with short cycle times, making it the ideal choice for vacuum leak testing systems. Its compact design ensures seamless integration with minimal installation effort and space requirements. Enhance your operations with modern fieldbus systems for optimized performance.

Helium Savings and Higher Efficiency with EcoBoost

The unique and patented EcoBoost feature enables the LDS3000 leak tester to detect smallest leaks, even on high and decreasing tracer gas background levels. Due to excellent instrument quality leading to extremely precise, repeatable and linear measurements, an intelligent algorithm predicts decreasing tracer gas backgrounds with high accuracy.

With EcoBoost, the LDS3000 Helium Leak Detector can detect leaks early in the testing cycle and without the risk of missing small leaks. EcoBoost can also allow for the use of smaller, less energy consuming pumps and reduced helium consumption.

Features

  • Compact design allows individualized, custom integration into leak detection systems
  • Communicative diversity through a wide range of analog and digital interfaces
  • Considerably improved cabling
  • The new, patented routine allows calibration of the LDS3000 leak detector within 20 seconds.

Advantages

  • Compact design for quick and easy integration
  • Reliable performance
  • Highest accuracy and repeatability in the market
  • Marke t leader in cycle time: Rapid detection of leak rates up to 1 x 10-11 mbar l/s in less than 1 second
  • PROFIBUS interface for simplified connectivity and interoperability, remote access and high data transfer efficiency.
  • Digital interfaces, including RS232, RS485, USB
  • Wide range of analog interfaces
  • Minimal downtimes and reduced maintenance requirements
  • Fast calibration times, typically around 20 seconds
  • Optional touch screen display

Typical Applications

  • Evaporators, condensers, compressors
  • Battery cell housings
  • Battery pack trays and lids
  • Airbag gas generators and ignitors
  • Valves
  • Brake lines, fuel lines
  • Hydraulic components
  • Combustion Engines

Specifications

Min. detectable leak rate for Helium "ULTRA"-Mode mbar·l/s <1E-11
Min. detectable leak rate for Helium "FINE"-Mode mbar·l/s <5E-11
Min. detectable leak rate for Helium "GROSS"-Mode mbar·l/s <1E-9
Min. detectable leak rate for Helium "Sniffer"-Mode mbar·l/s <1E-7
Measuring units   mbar·l/s, Pa•m³/s, Atm cm³, g/a, ppm
Max. inlet pressure "ULTRA"-Mode mbar 0.2
Max. inlet pressure "FINE"-Mode mbar 0.9
Max. inlet pressure "GROSS"-Mode mbar 18
Response time s <1
Digital inputs/outputs (if used with IO1000 Modul)   10 inputs / 8 outputs
Control input V max. 35 (PLC compatibel)
Ion Source   2 yttrium/iridium long-life cathodes (3 years guarantee)
lin/log recorder output V 0-10
Serial interface (with IO1000 / BM1000)   RS232, RS485, Fieldbus
Dimensions (L x W x H) mm
in		 330 x 240 x 280
13 x 9.45 x 11.1
Ambient temperature range C
F		 10 - 45
50-113
Vacuum connections   DN 16 KF, DN 25 KF
For the operation of the LDS3000 leak detector you need as basis one data cable and a IO1000 Module or BM1000-Module.
