SKU:710-202-G1

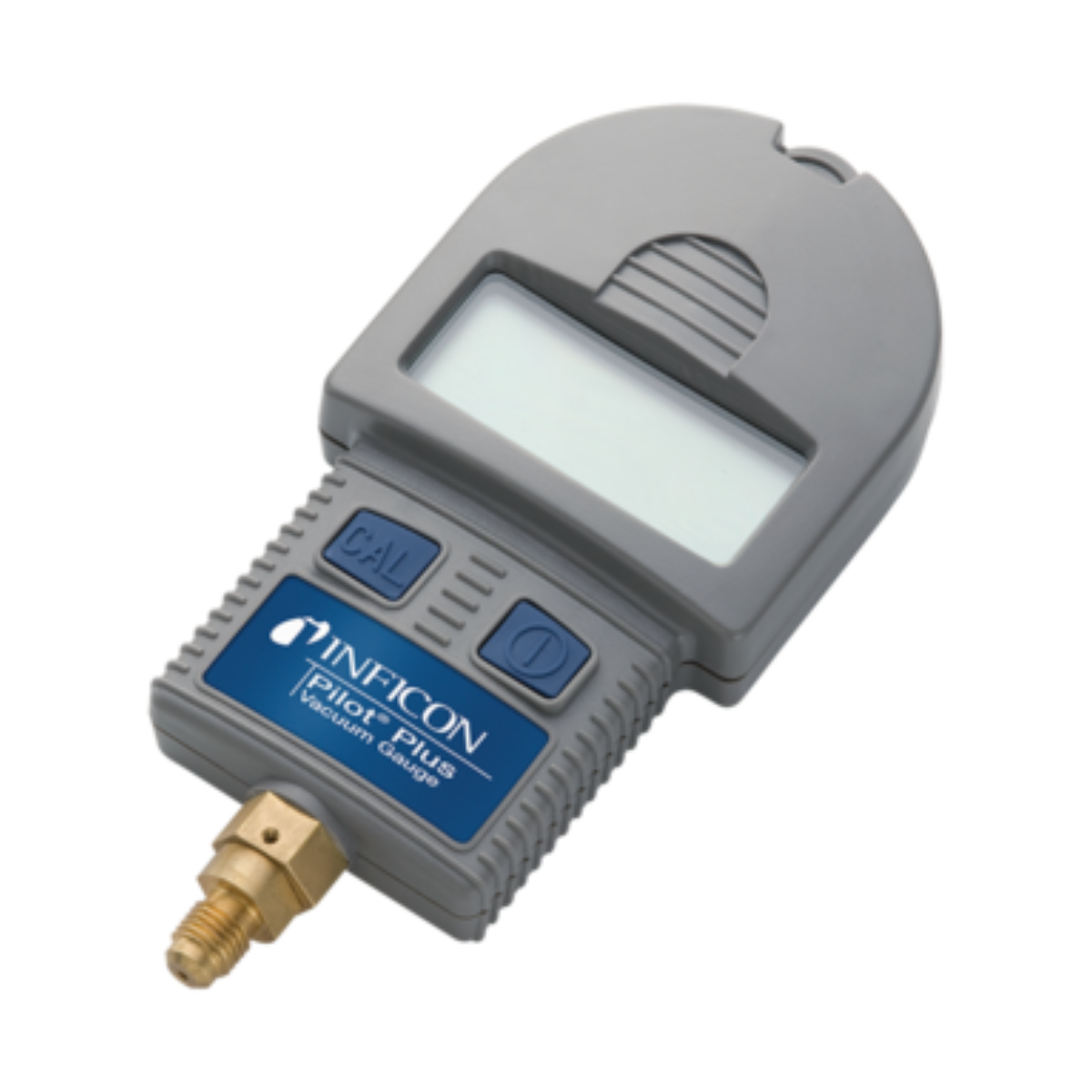

INFICON PILOT® PLUS VACUUM GAUGE

$ 618.14 inc.
$ 618.14 inc.
Sale Sold out
Shipping calculated at checkout.
Fittings:
Secure checkout with
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

 Description

INFICON Pilot Plus Vacuum Gauge incorporates several innovative features for unsurpassed performance. Like the original Pilot Vacuum Gauge, its Pirani sensor provides greater accuracy and the ability to measure the entire vacuum process, from atmosphere down to one micron. You'll know instantly if your connections are vacuum-tight.



Features

  • Operates for 45 hours on one 9V battery
  • Quick calibration specific to local pressure
  • Displays in micron, Pascal, Torr or millibar
  • Low battery indicator
  • Plastic storage case included
  • 1-year replacement warranty
  • Made in the USA



Advantages

  • Innovative filter protects sensor, eliminates need for cleaning
  • Measures from atmosphere to 1 micron
  • Auto shut-off after 60 minutes to conserve battery
  • Pirani sensor for better accuracy
  • Large, easy-to-read LCD display



Typical Applications

  • Vacuum measurement in HVAC/R service



Specifications

Base unit includes 9V battery, filters, storage case
Power source (1) 9V alkaline battery, included
Display units microns, Pascal, millibar, Torr
Display range atm (760,000 microns) to 1 micron (0.01 mbar, 0.001 Torr, 1 Pa)
