SKU:

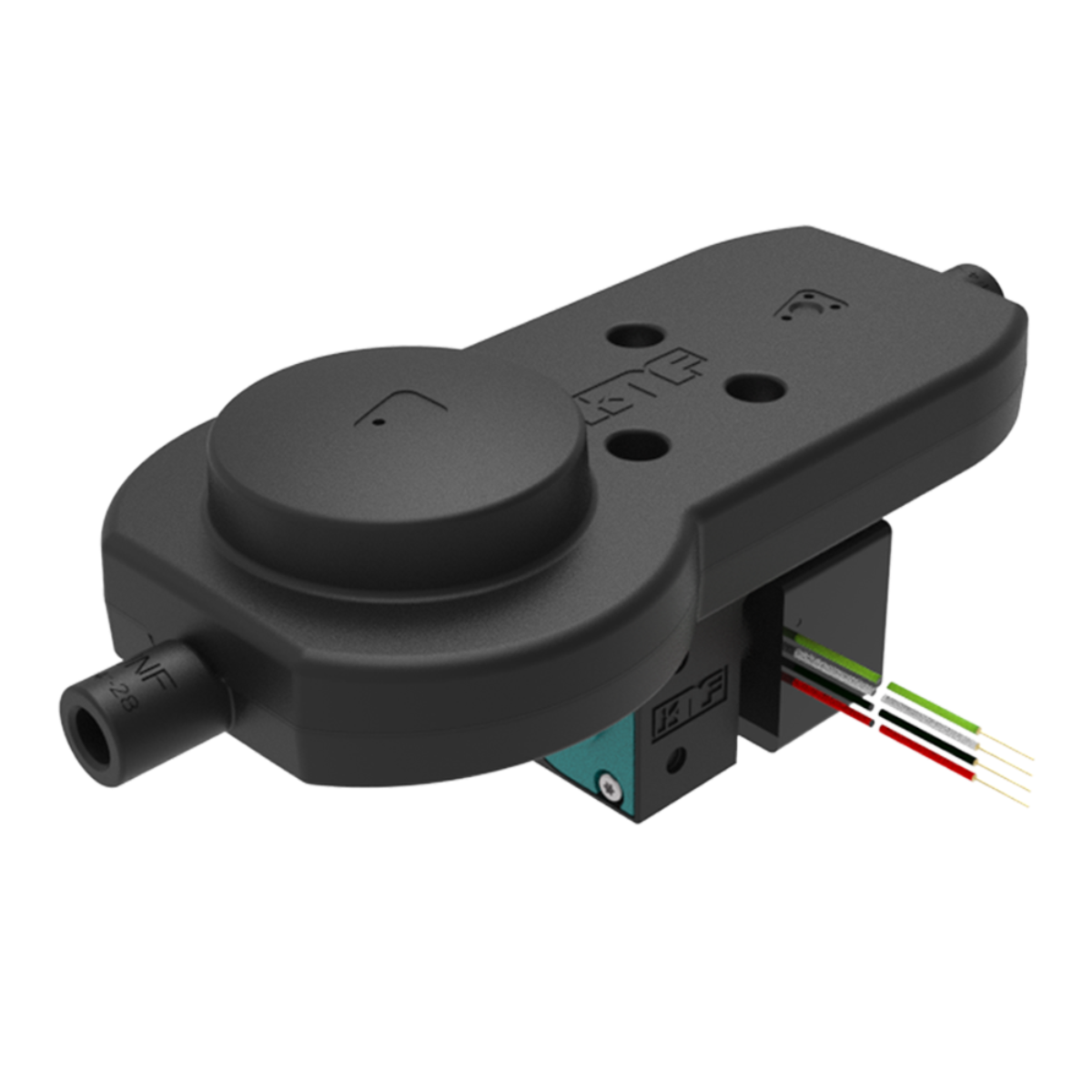

KNF FP 1.7
PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Description
- Flow Rate (max.): 0.07 l/min
- Pressure (max.): 6 bar (rel.)
- Suction Height (max.): 2 mH₂O
KNF diaphragm liquid pumps combine maximum performance with minimum size. The use of chemically resistant materials enables the pumps to convey virtually any type of liquid, whether neutral or corrosive. They are dry-running, self-priming, maintenance free, and available with many different motor- and hydraulic connection options.
Technical Details
| Flow Rate (max.) | 0.07 l/min |
| Pressure (max.) | 6 bar (rel.) |
| Suction Height (max.) | 2 mH₂O |
| Valve Material Options | EPDM, FFKM |
| Diaphragm Material Options | EPDM, PTFE |
| Pump Head Material Options | PPS |
| Motor Type Options | DC, Brushless DC |
Features
Benefits
- Digitally adjustable motor
- Excellent reliability
- High performance-to-size ratio
- Low sound level
- Contamination free transfer
- Highly resistant to aggressive media
- Self priming
- FDA-approved materials available
- Adjustable performance
Special Features
- Low pulsation
- NSF certified
Applications
- Analytical instruments
- Cleaning and disinfection
- Emission monitoring
- Inkjet printing
- Semi-conductors
- Medical equipment
- Food & beverage industry
- Fuel cells
Downloads
Datasheet FP 1.7Warranty & Service
