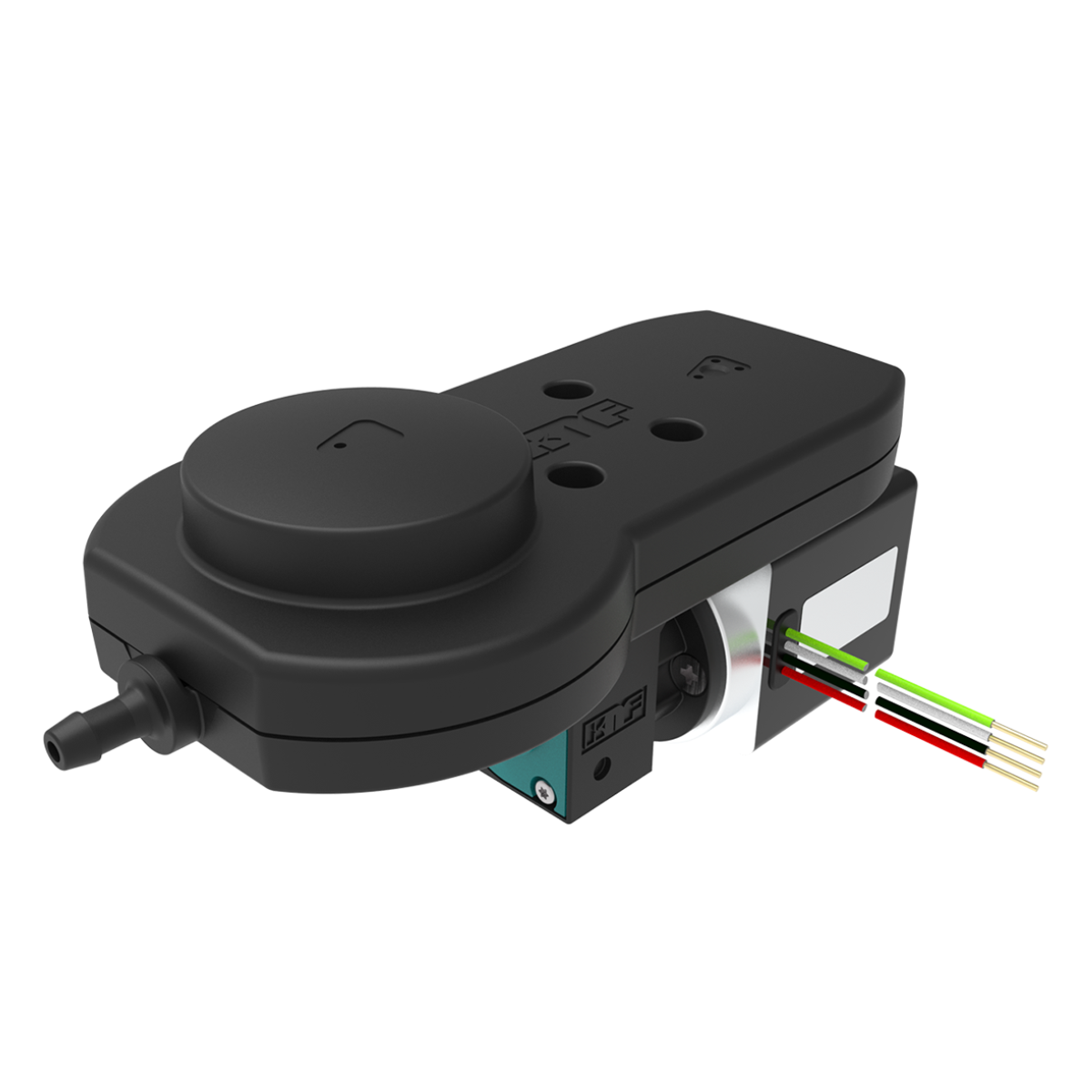

KNF FP 25

  • PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Enquiry About This Product

 Description

  • Flow Rate (max.): 0.25 l/min
  • Pressure (max.): 1 bar (rel.)
  • Suction Height (max.): 3 mH₂O

KNF diaphragm liquid pumps combine maximum performance with minimum size. The use of chemically resistant materials enables the pumps to convey virtually any type of liquid, whether neutral or corrosive. They are dry-running, self-priming, maintenance free, and available with many different motor- and hydraulic connection options.



Technical Details

Flow Rate (max.) 0.25 l/min
Pressure (max.) 1 bar (rel.)
Suction Height (max.) 3 mH₂O
Valve Material Options FFKM, EPDM
Diaphragm Material Options PTFE, EPDM
Pump Head Material Options PPS
Motor Type Options DC, Brushless DC



Features

Benefits
  • Excellent reliability
  • High performance-to-size ratio
  • Low sound level
  • Contamination free transfer
  • Maintenance-free
  • Highly resistant to aggressive media
  • Self priming
  • Can run dry
  • Low pulsation
  • NSF certified
  • FDA-approved materials available
  • Digitally adjustable motor
  • Adjustable performance
Special Features
  • High IP class (>44)
  • Low pulsation
  • NSF certified



Applications

  • Analytical instruments
  • Cleaning and disinfection
  • Emission monitoring
  • Food & beverage industry
  • Fuel cells
  • Inkjet printing
  • Semi-conductors



Downloads

Datasheet FP 25

Operating Manual FP 25
