SKU:

KNF N 035.1

  • PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE

 Description

  • Flow Rate (max.): 55 l/min
  • Pressure (max.): 0 bar (rel.)
  • Vacuum (max.): 100 mbar (abs.)

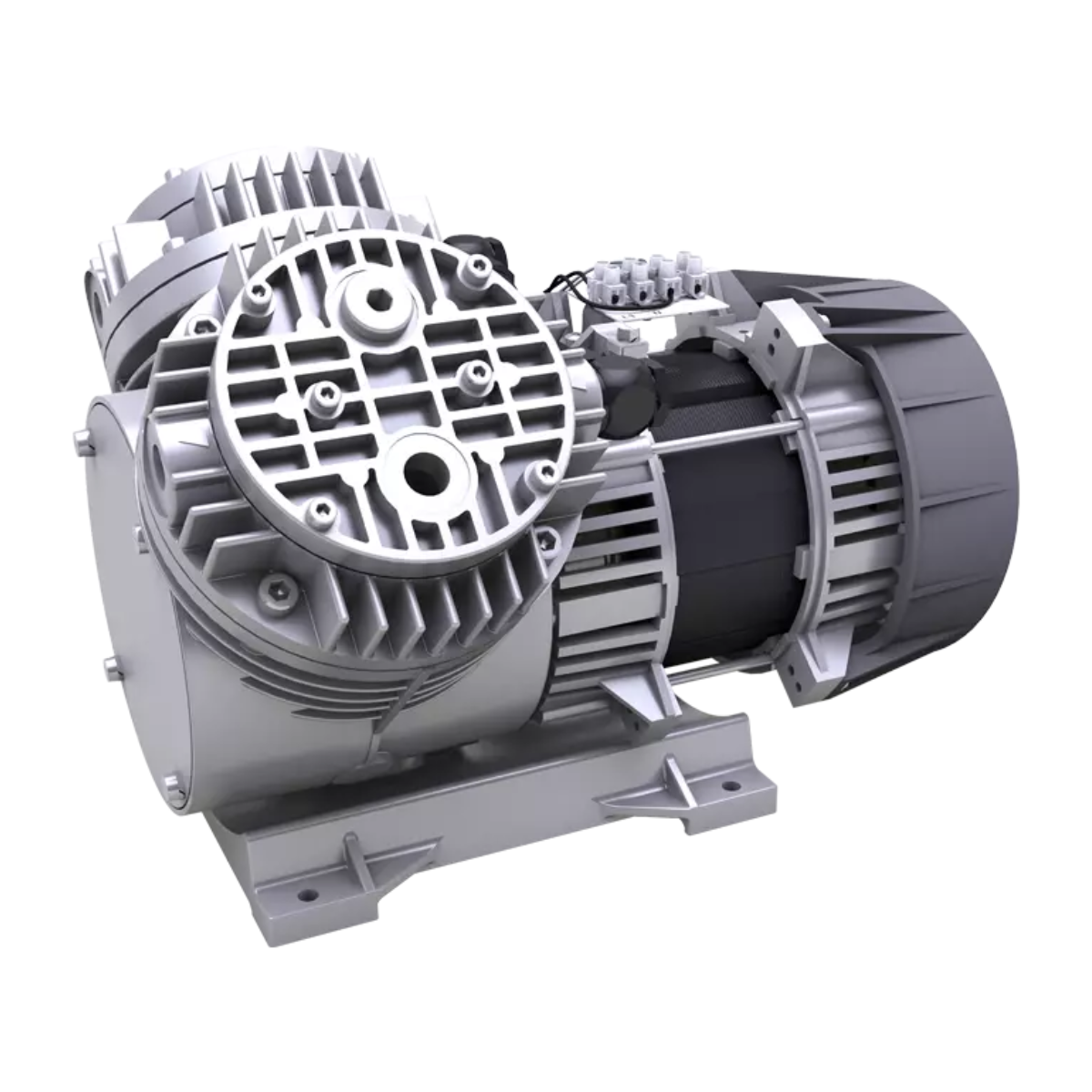

KNF diaphragm gas pumps transfer or compress gases and vapors and generate vacuum without contaminating the media. They are available with options for application requirements related to size, motor, control, voltage, chemical resistance, safety, vibration, noise and temperature resistance. All pump types offer oil-free operation.



Technical Details

Flow Rate (max.) 55 l/min
Pressure (max.) 0 bar (rel.)
Ultimate Vacuum (max.) 100 mbar (abs.)
Valve Material Options Stainless steel, CR, PTFE, FPM
Diaphragm Material Options CR, PTFE coated, FPM
Pump Head Material Options Aluminium, Stainless steel
Motor Type Options AC



Features

Benefits
  • Excellent reliability
  • Contamination free transfer
  • Maintenance-free
Special Features
  • Diaphragm pump
  • High IP class (>44)



Applications

  • Medical equipment
  • Analytical instruments
  • Chemical industry
  • Climate technology
  • Gas analytics
  • Emission monitoring



Downloads

Datasheet N 035.1

Operating Manual N 035.1
