SKU:

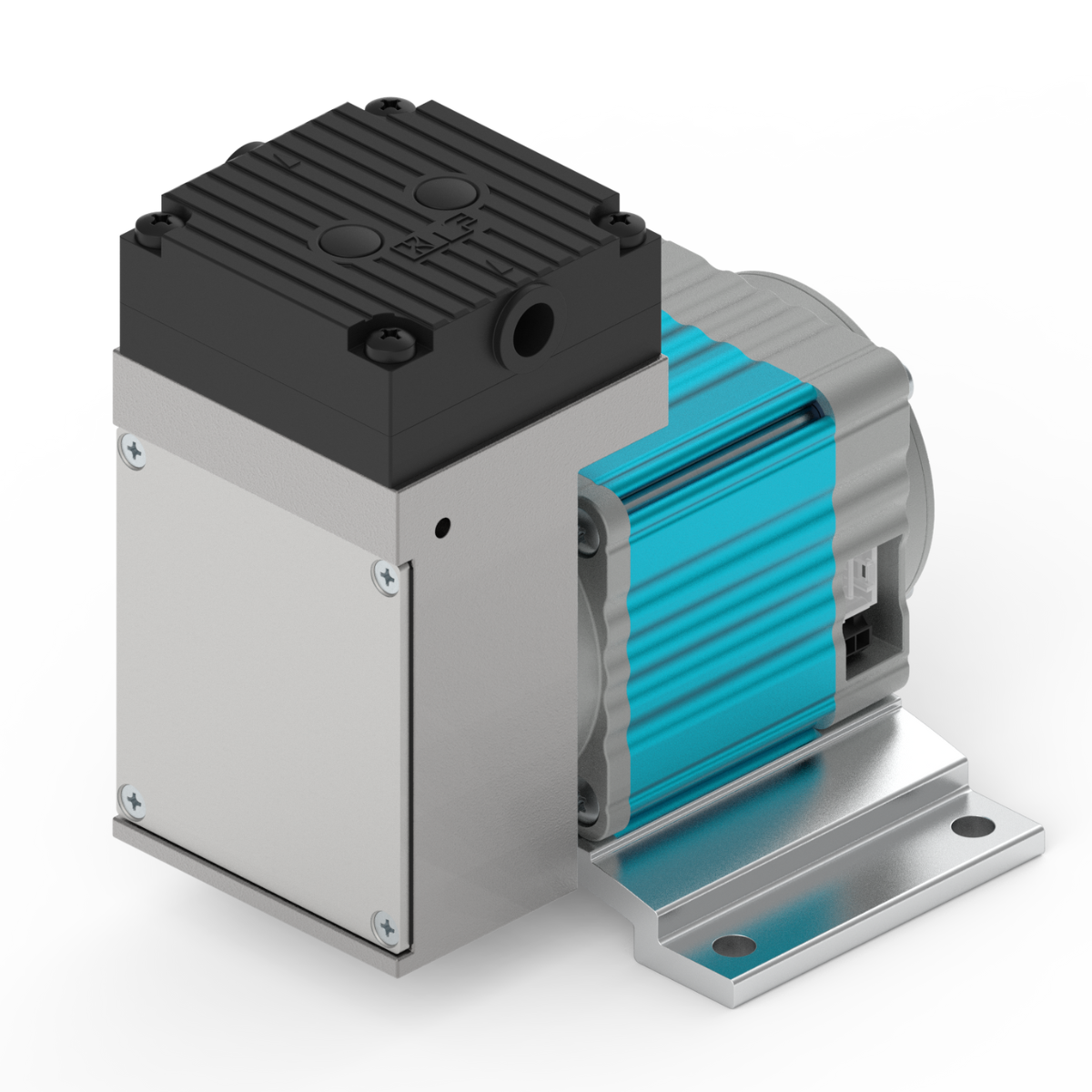

KNF N 816

  • PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE

 Description

  • Flow Rate (max.): 16 l/min
  • Pressure (max.): 2 bar (rel.)
  • Vacuum (max.): 100 mbar (abs.)

KNF diaphragm gas pumps transfer or compress gases and vapors and generate vacuum without contaminating the media. They are available with options for application requirements related to size, motor, control, voltage, chemical resistance, safety, vibration, noise and temperature resistance. All pump types offer oil-free operation.



Technical Details

Flow Rate (max.) 16 l/min
Pressure (max.) 2 bar (rel.)
Ultimate Vacuum (max.) 100 mbar (abs.)
Valve Material Options EPDM, FFPM
Diaphragm Material Options EPDM, PTFE coated
Pump Head Material Options PPS
Motor Type Options Brushless DC, AC



Features

Benefits
  • Excellent reliability
  • Contamination free transfer
  • Adjustable performance
  • Low sound level
  • Digitally adjustable motor
Special Features
  • Diaphragm pump



Applications

  • Medical equipment
  • Analytical instruments
  • Lab equipment
  • Agriculture
  • Climate technology
  • Food & beverage industry
  • Cleaning and disinfection
