SKU:

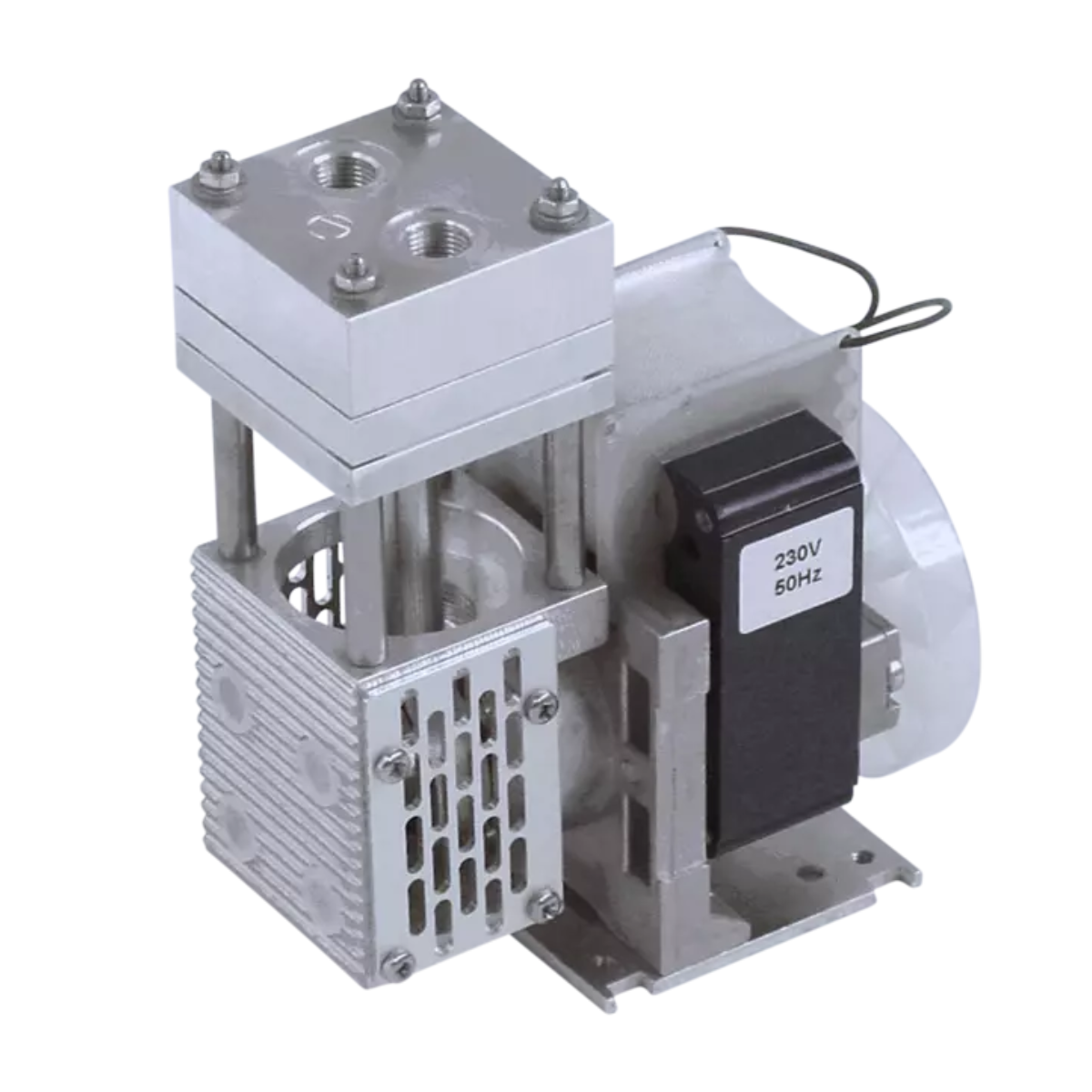

KNF N 86.16
PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Description
- Flow Rate (max.): 6 l/min
- Pressure (max.): 1.5 bar (rel.)
- Vacuum (max.): 290 mbar (abs.)
KNF diaphragm gas pumps transfer or compress gases and vapors and generate vacuum without contaminating the media. They are available with options for application requirements related to size, motor, control, voltage, chemical resistance, safety, vibration, noise and temperature resistance. All pump types offer oil-free operation.
Technical Details
| Flow Rate (max.) | 6 l/min |
| Pressure (max.) | 1.5 bar (rel.) |
| Ultimate Vacuum (max.) | 290 mbar (abs.) |
| Valve Material Options | PTFE |
| Diaphragm Material Options | PTFE |
| Pump Head Material Options | Aluminium, Stainless steel |
| Motor Type Options | AC |
Features
Benefits
- Excellent reliability
- Contamination free transfer
- Highly resistant to aggressive media
Special Features
- Diaphragm pump
- Hot gases
Applications
- Analytical instruments
- Lab equipment
- Automotive
- Chemical industry
- Gas analytics
- Emission monitoring
- Security and defense
Downloads
3D CAD Model N 86.16Catalogues
Warranty & Service
