SKU:

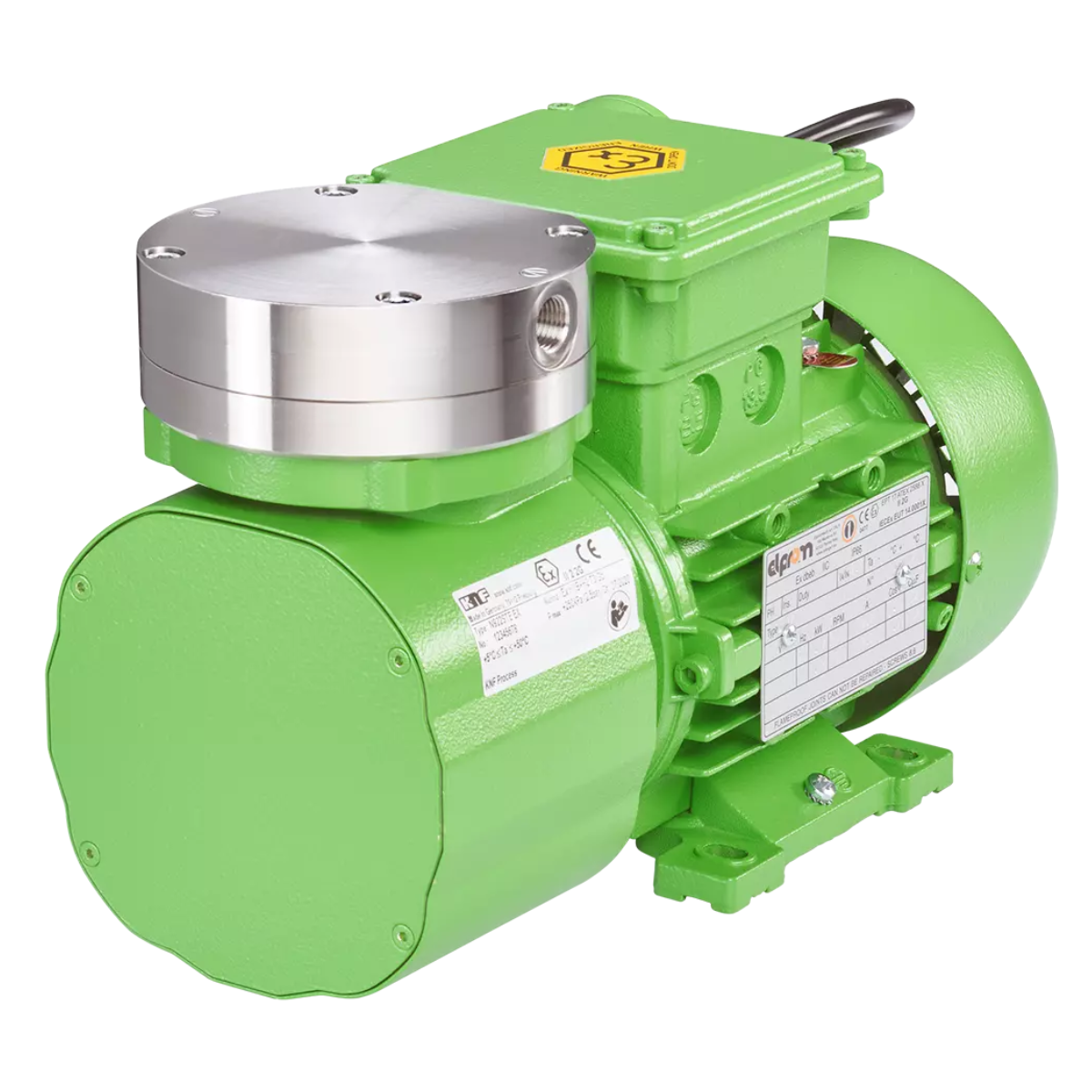

KNF N 922 ST EX
PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Description
- Flow Rate (max.): 23 l/min
- Pressure (max.): 2.5 bar (rel.)
- Vacuum (max.): 110 mbar (abs.)
KNF diaphragm gas pumps transfer or compress gases and vapors and generate a vacuum without contaminating the media. Different options are available for application-specific requirements related to size, motor type, control, voltage, chemical resistance, safety, vibration, noise, and temperature resistance. All pump types offer oil-free operation.
Technical Details
| Flow Rate (max.) | 23 l/min |
| Pressure (max.) | 2.5 bar (rel.) |
| Ultimate Vacuum (max.) | 110 mbar (abs.) |
| Valve Material Options | Stainless steel |
| Diaphragm Material Options | PTFE coated |
| Pump Head Material Options | Stainless steel |
| Motor Type Options | AC |
Features
Benefits
- Excellent reliability
- Contamination free transfer
- Adjustable performance
- Maintenance-free
- Low sound level
- High performance-to-size ratio
Special Features
- Diaphragm pump
- High IP class (>44)
- Ex-proof
Applications
- Analytical instruments
- Chemical industry
- Gas analytics
- Emission monitoring
- Climate technology
