SKU:

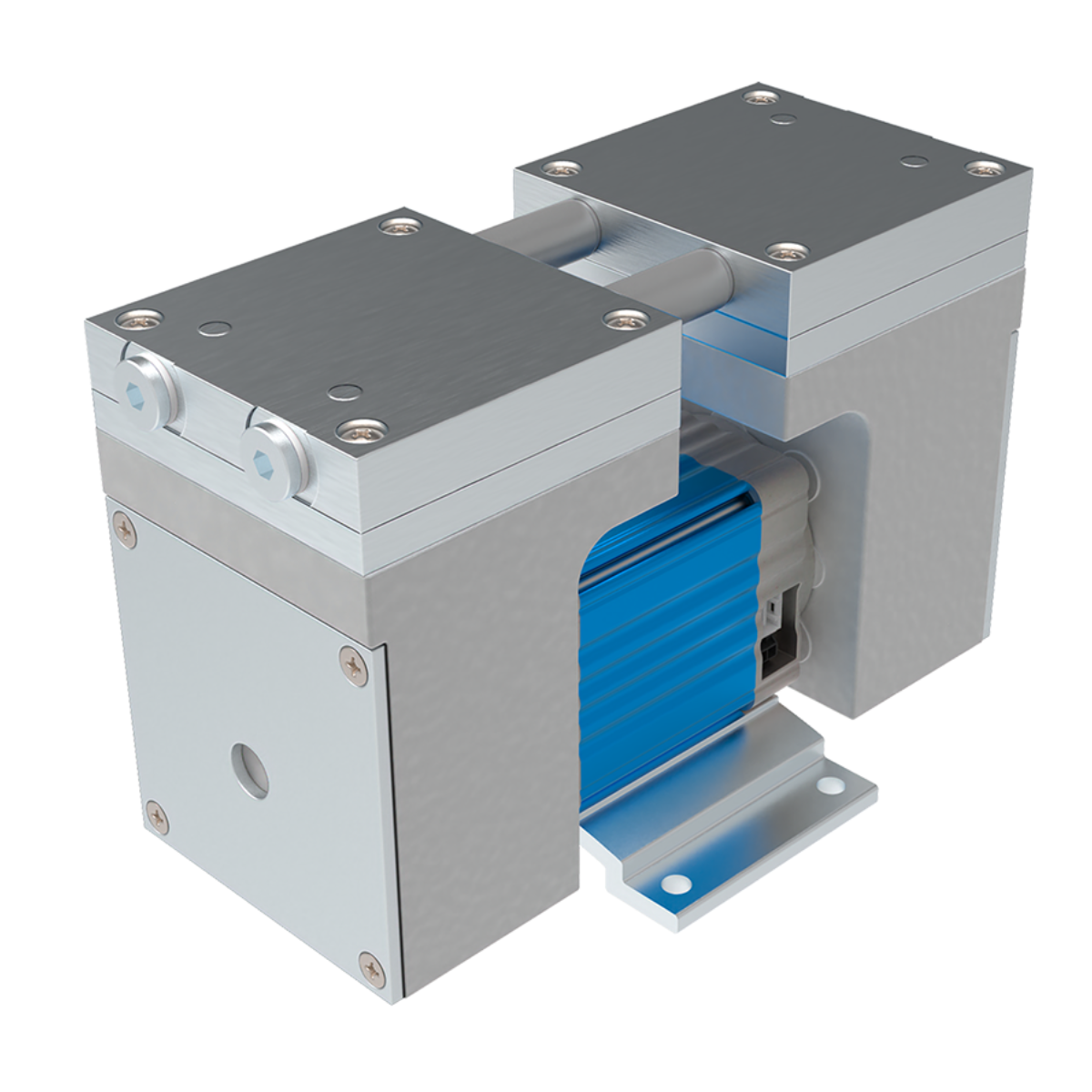

KNF N 938.1.2
PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE
Description
- Flow Rate (max.): 53 l/min
- Pressure (max.): 1 bar (rel.)
- Vacuum (max.): 140 mbar (abs.)
KNF diaphragm gas pumps transfer or compress gases and vapors and generate vacuum without contaminating the media. They are available with options for application requirements related to size, motor, control, voltage, chemical resistance, safety, vibration, noise and temperature resistance. All pump types offer oil-free operation.
Technical Details
| Flow Rate (max.) | 53 l/min |
| Pressure (max.) | 1 bar (rel.) |
| Ultimate Vacuum (max.) | 140 mbar (abs.) |
| Valve Material Options | FPM |
| Diaphragm Material Options | EPDM |
| Pump Head Material Options | Aluminium |
| Motor Type Options | Brushless DC |
Features
Benefits
- Adjustable performance
- Digitally adjustable motor
- Contamination free transfer
- Low sound level
- Excellent reliability
- High performance-to-size ratio
Special Features
- Diaphragm pump
Applications
- Analytical instruments
- Gas analytics
- Vacuum technology
- Fuel cells
- Emission monitoring
- Medical equipment
