LEYBOLD RUVAC WSU 3001

  • PLEASE LODGE AN ENQUIRY FOR THE CURRENT PRICE

 Description

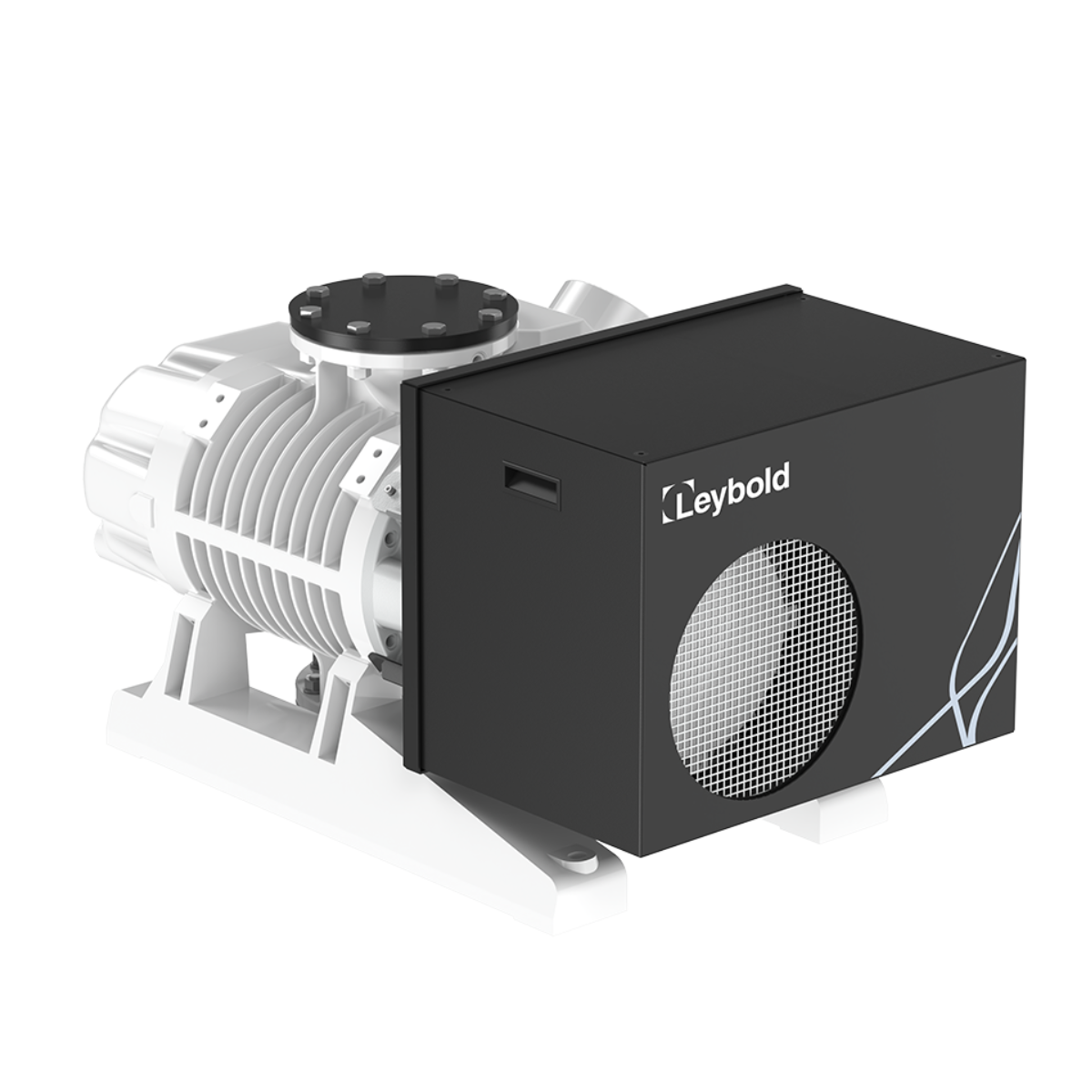

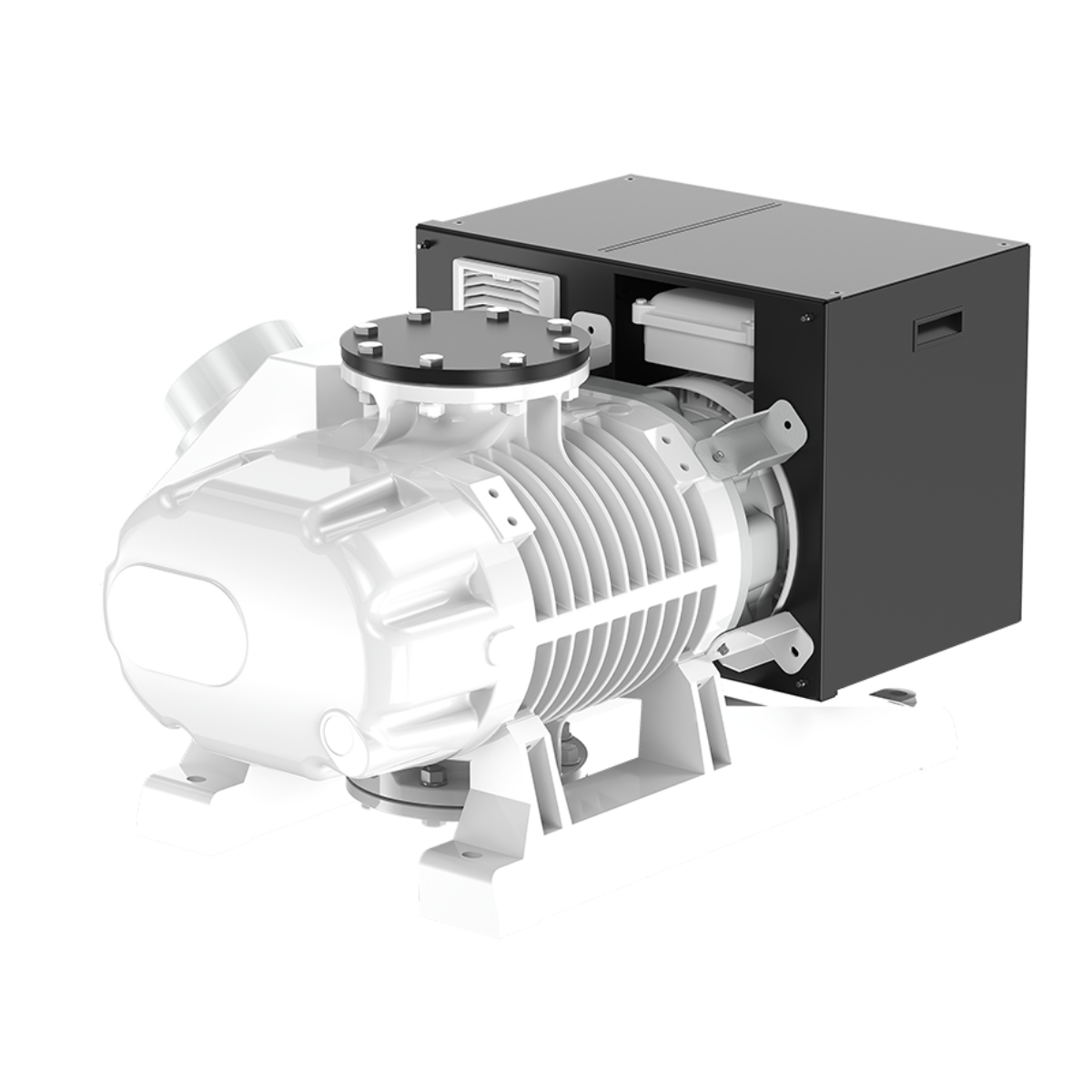

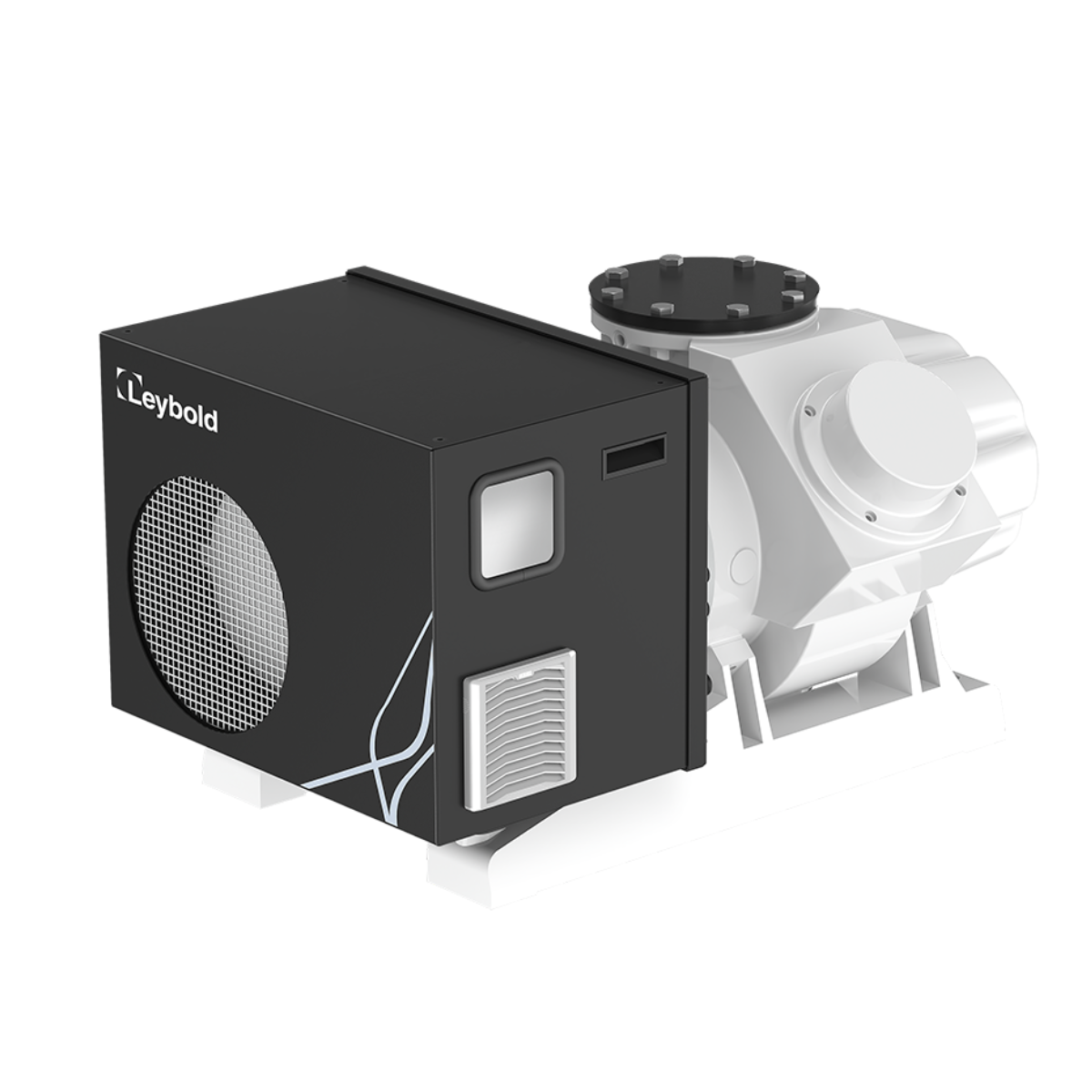

The new booster with frequency converter

The RUVAC WSU 3001 is an upgrade product based on WSU 2001 in
combination with a GA500 Invertor. Through the extension the pump
has a better protection control. An overload can be automatically
avoided throgh the reduction of the frequency.

  • Performance Driven: for 48.5% more pumping speed compared to WSU 2001.
  • Plug & Go: Easy for electrical connection – only power for FC and motor fan is needed.
  • Extended Uptime: Alarm or stop signal when over-temperature is detected.

Technical Description

 Normal pumping speed m3/h 3000
Ultimate pressure mbar <0.04
Motor power kW 7.5
Noise level dB (A) <72
Inlet/Outlet connection  ISO-K DN160
Net weight kg 475
Voltage (invertor) V 380 ~ 460
Oil
LVO 211
Oder Information PN 12273000V01



Typical Applications

  • Solar lamination
  • Coating
  • Drying for Li-battery
  • Heat treatment
  • Oil purifier
  • Food packaging
  • Freeze drying
